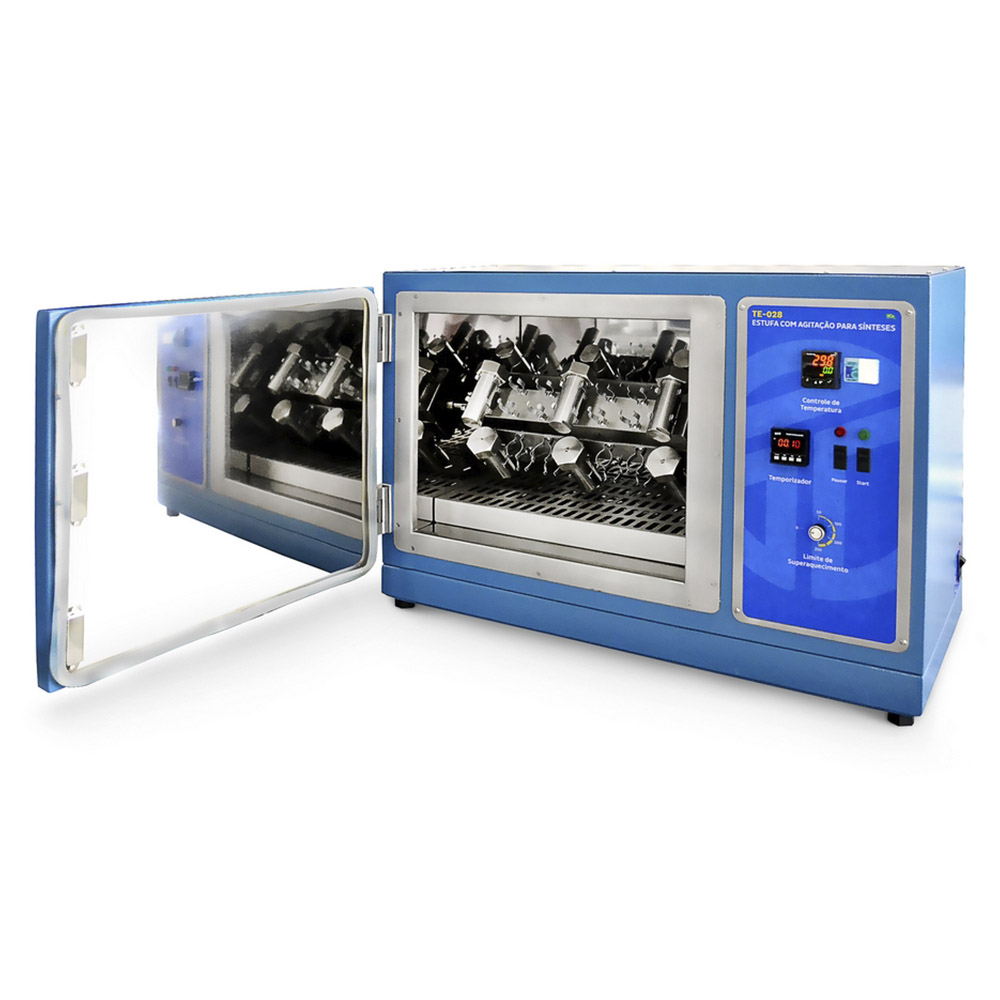

STOVE WITH STIRRING FOR SYNTHESES

TE-028

Used in chemical analysis laboratories especially for synthesis processes that occur through reactions by heating pressing and/or stirring two or more molecules to form a larger and more complex molecule.

Consult one of our specialist

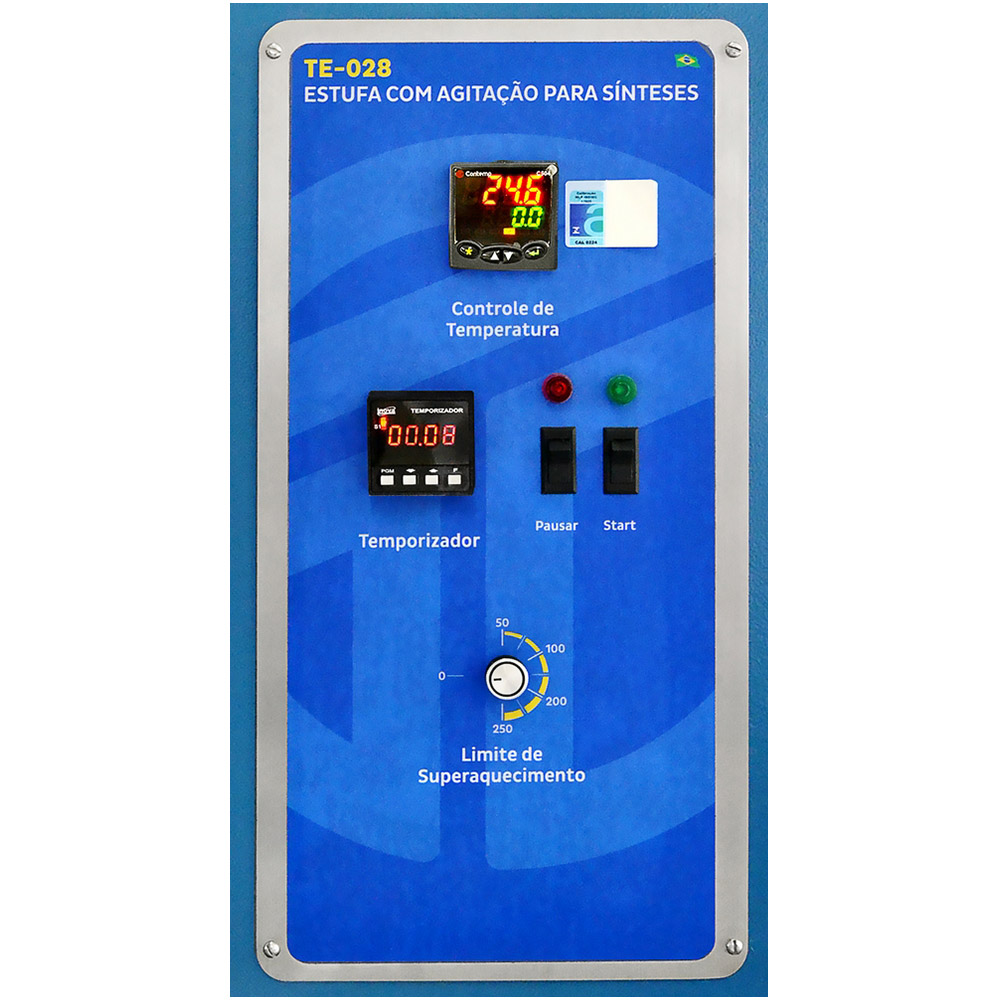

Easy programming using a controller and a digital timer
Precise temperature control allowing the system to operate constantly at the desired set point even in case of external variations
Possibility of setting up an audible alarm at the end of the shaking time providing practicality to analysts during the work routine
Steel structure ensuring optimum heat shield providing uniformity in temperature during usage
Carbon steel cabinet with anti-corrosion treatment and electrostatic painting ensuring longer equipment life cycle and easy asepsis

Temperature: Ambient +7°C to 200°C
Temperature control: Digital microprocessor with PID system and RBC calibration certificate
Sensor: PT-100
Control accuracy ±0.2°C
Uniformity: ±4°C
Rotation: Fixed at 60 rpm
Rotation accuracy: ±5 rpm
Capacity: 28 samples
Agitation range: 360°
Timer: Digital - For HH:MM shake time control
Note: It is possible to configure an audible alarm to indicate the end of the agitation time
Cabinet: In SAE 1020 steel, with anti-corrosive treatment and electrostatic painting
Dimensions: W=850 x H=560 x D=480 mm
Power: 1600 Watts
Voltage: 220V+/-5% 50/60Hz
Accompanies: - 01 resistance protection grid - 02 extra fuses - Instruction manual with warranty term
Note: Does not come with capsules
