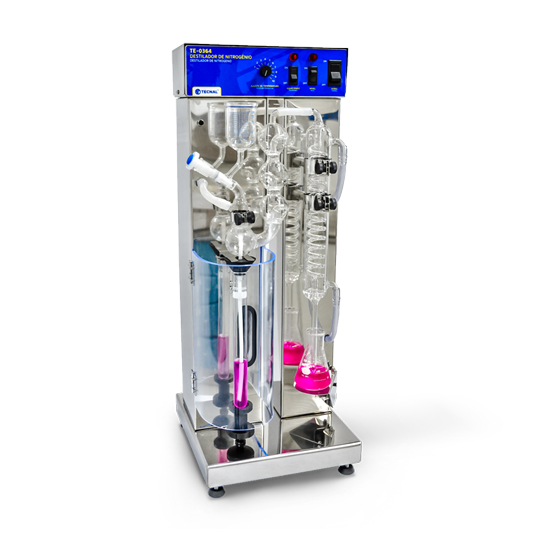

Used for distillation of ammoniacal nitrogen total volatile bases (BVT) and nitrogen/protein analysis by the Kjeldahl method after the digestion process.
Consult one of our specialist
Consult one of our specialist
Sugar & Ethanol
Food, Beverage & Animal Nutrition
Environmental, Waters & Effluents
Plant & Soil Science
Pharmaceutical & Cosmetics
Microbiology & Biotechnology
Chemistry & Petrochemicals
  • Presence of LED indication of boiler heating and water level greatly increasing the levels of safety of equipment use
  • Compact and easy-to-handle equipment
  • It has a power variable (dimer) that varies the resistance power providing greater security to the analyst
  • Contains power sink for heat dissipation from the power inverter which provides longer life useful to the equipment
  • Built-in borosilicate glass boiler with semi-automatic filling and internal installation for larger safety
  • It has a Stop Flow valve with the possibility of adjusting the terminal by screw inside the glassware providing a long period of work without the need to change it due to wear and tear
  • Distillation capacity: ±18 ml/minute providing greater efficiency and speed during the process
  • Presence of an acrylic protector on the front of the equipment also improving the safety of the analyst
  • Possibility of using both micro and macro tubes providing practicality and flexibility
  • Contains separate boiler and condenser water inlets there is the possibility of using a bath thermostated for cooling the condensers providing water savings
  • Rigid Quality Control in which checks and tests ensure the perfect functioning of the equipment providing safety and client satisfaction
  • Client service to answer questions and provide explanations about the equipment and methodologies
  • Possibility of adaptations according to the clients needs makes the equipment already of line a special equipment.
  • Temperature control: Analog
  • Control panel: With visual indicators for heating and boiler level
  • Boiler: In built-in borosilicate glass with semi-automatic filling
  • Sensor: For boiler level indication
  • Security: Acrylic protector on the front
  • Glassware: Kjeldahl type connection with borosilicate glass dosing cup and Stop-flow valve
  • Distillation capacity: ±18ml/minute
  • Cabinet: Stainless steel 304 Polished
  • Water inlet system: 2 independent water inlets
  • - One to feed the boiler: To use water at room temperature
  • - One to feed the condenser: Allows the use of water with temperatures below the ambient, providing the use of thermostated baths in order to ncrease the efficiency of color change in the condenser
  • NOTE: Never use the water inlet of the boiler with a thermostated bath
  • Dimensions: W=290 x D=330 x H=730 mm
  • Weight: 13 kg
  • Power: 1500 Watts
  • Voltage: 220 Volts
  • ACCOMPANIES: - 01 Ø25 x 250 mm micro tube with borosilicate glass edge - 02 extra fuses - Instruction Manual with Warranty Term
