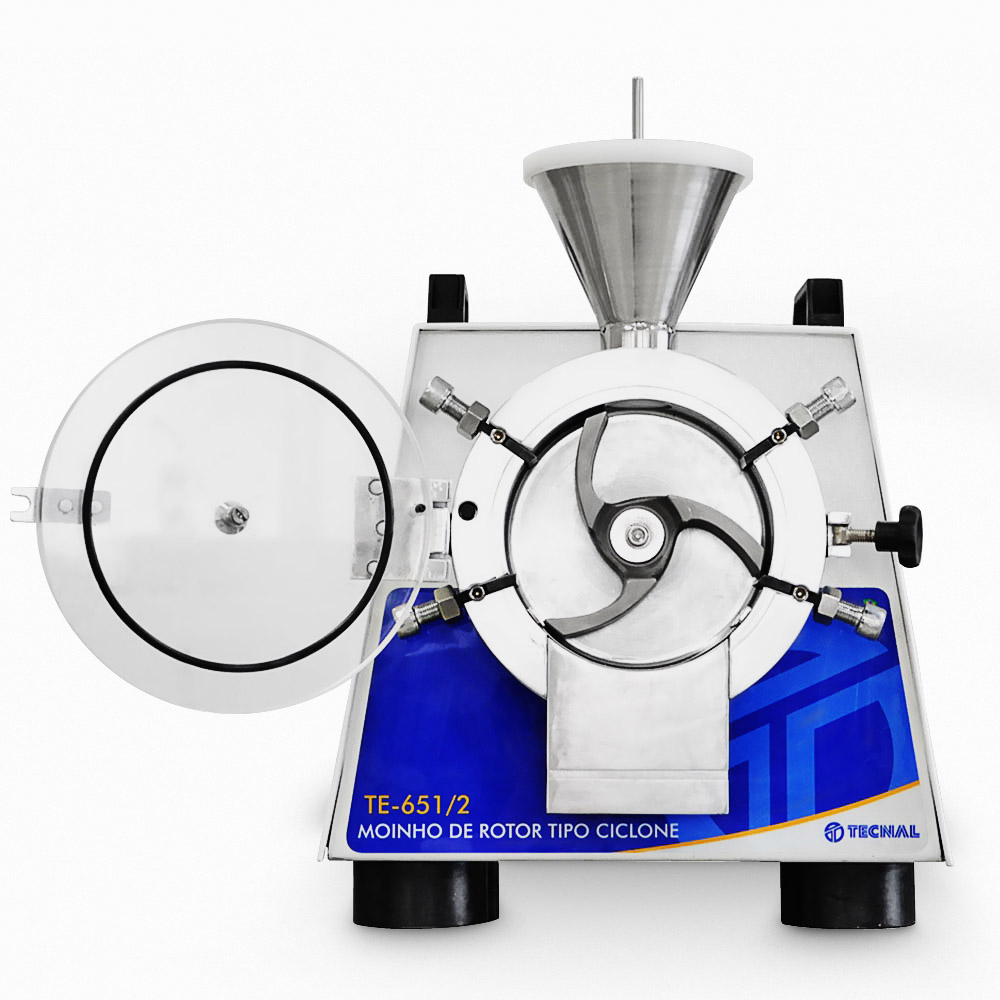

ROTOR MILL

R-TE-651/2

Used for grinding feed, grains and food in general.

Consult one of our specialist

Compact and easy-to-handle equipment
Milling with continuous flow, providing agility
Acrylic lid for viewing the grinding
Chromed steel chamber with 4 adjustable knives made of high hardness special steel and anti-oxidation treatment
Large sample output, with an area of 12.8 cm2, facilitating the collection of the ground sample
Comes with 3 mesh sieves 10, 20 and 30, easy to change, providing agility and practicality
It has a lid opening sensor, ensuring safety
The knives are in VND, special steel, produced and processed to achieve a high degree of quality by having high hardness and high wear resistance
4-pole Engine, with a power of 750 Watts and speed 1730 RPM, has greater torque in relation to the Engine 2-pole
It has fast fuses, providing greater protection and security
It has handles that make it easy to transport and move the equipment
The presence of rubber cushion feet prevents chattering
Rigid Quality Control, in which checks and tests ensure the perfect functioning of the equipment, providing safety and client satisfaction
Client service, to answer questions and provide explanations about the equipment and methodologies
Possibility of adaptations according to the clients needs, makes the equipment already of line a special equipment.

Rotation: Fixed at 1730 RPM
Engine: 1 HP induction low speed

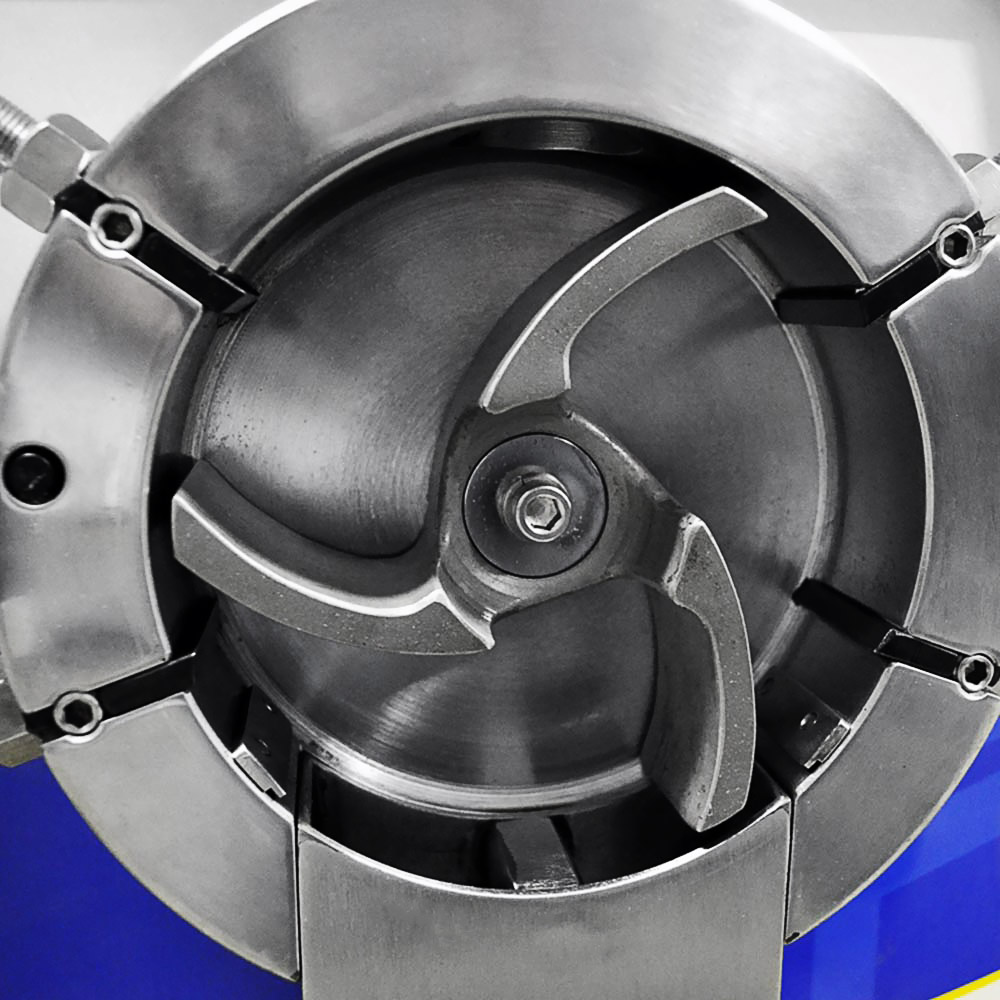

Rotor: Stainless steel cyclone type with three contact points
Milling: By continuous flow
Milling capacity: ±15 kg/hour (depending on the material to be milled)
Knife: 4 adjustable knives in VND
Safety: Allows rotor rotation only when the lid is closed
Cover: In clear acrylic
Grinding chamber: In chrome-plated steel with 4 adjustable knives in high-hardness special steel and anti-oxidation treatment
Cabinet: In carbon steel with anti-corrosive treatment and electrostatic painting
Dimensions: W=360 x D=600 x H=500 mm
Weight: 40 kg
Power: 750 Watts
Voltage: 220 Volts
ACCOMPANIES: - 02 extra fuses - 03 stainless steel sieves with mesh 10, 20, 30 - Instruction Manual with Warranty Term
