MICRO MILL TYPE WILEY

MICRO MILL TYPE WILEY
R-TE-648

Used for grinding small dry samples of leaves roots and tubers.
Consult one of our specialist
Consult one of our specialist
Sugar & Ethanol
Food, Beverage & Animal Nutrition
Environmental, Waters & Effluents
Plant & Soil Science
Pharmaceutical & Cosmetics
Microbiology & Biotechnology
Chemistry & Petrochemicals
  • It has a lid opening sensor ensuring safety
  • Compact and easy to use equipment
  • Greater speed in the grinding process
  • Grinding in continuous flow
  • Acrylic cover for sample display
  • Easy and quick adjustment of the rotor according to the sample
  • Accompanies 3 easy to change 10 20 and 30 mesh sieves providing agility and practicality
  • It has handles that facilitate transportation and displacement of the equipment
  • The presence of rubber damping feet prevents chatter providing stability
  • The knives are made of special steel produced and processed to reach a high degree of quality for having high hardness and high resistance to wear
  • Strict Quality Control in which checks and tests guarantee the perfect functioning of the equipment providing safety and client satisfaction
  • Client service to answer questions and provide explanations about the equipment and methodologies
  • Possibility of adaptations according to the needs of the client makes the equipment already in line a special equipment.
  • Rotation: Fixed at 1730 RPM
  • Engine: 1/4 HP single-phase induction
  • Rotor: 4 fixed blades in high hardness special steel with anti-oxidation treatment
  • Milling: By continuous flow
  • Safety: Allows knife/rotor turning only when the lid is closed

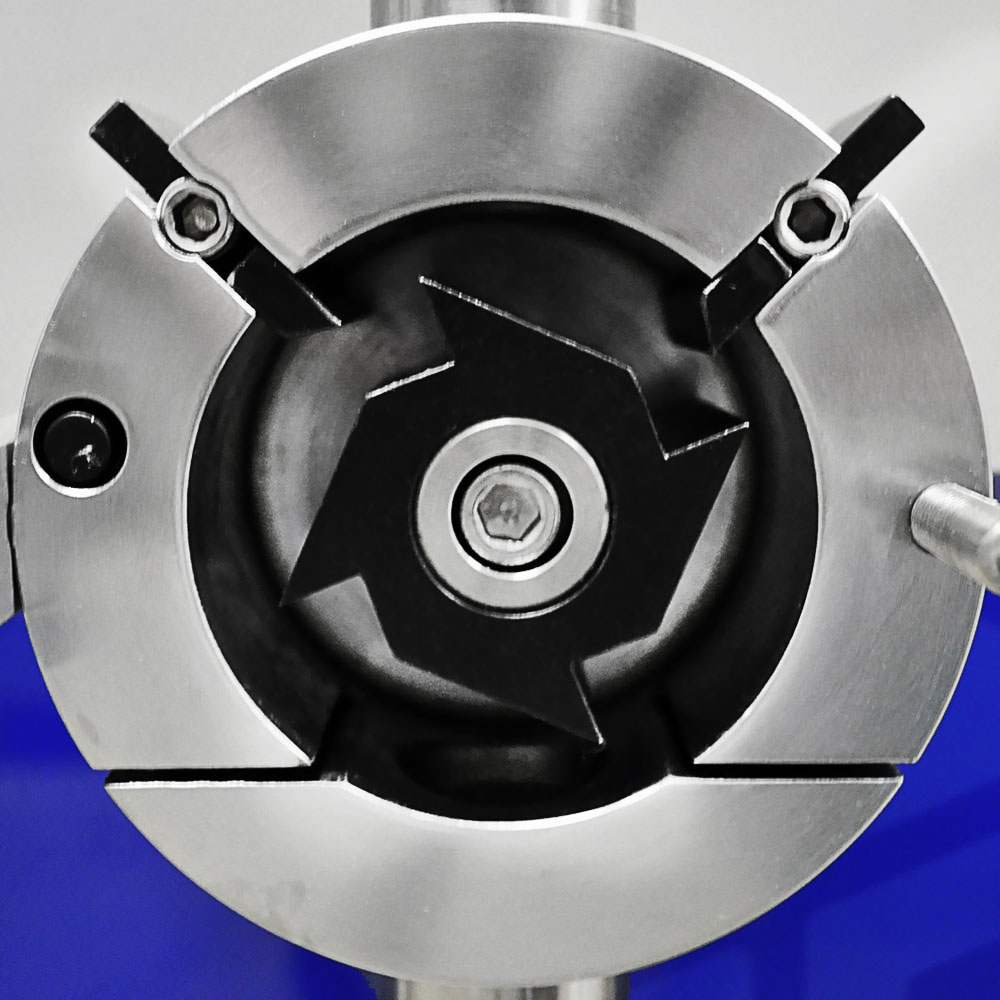

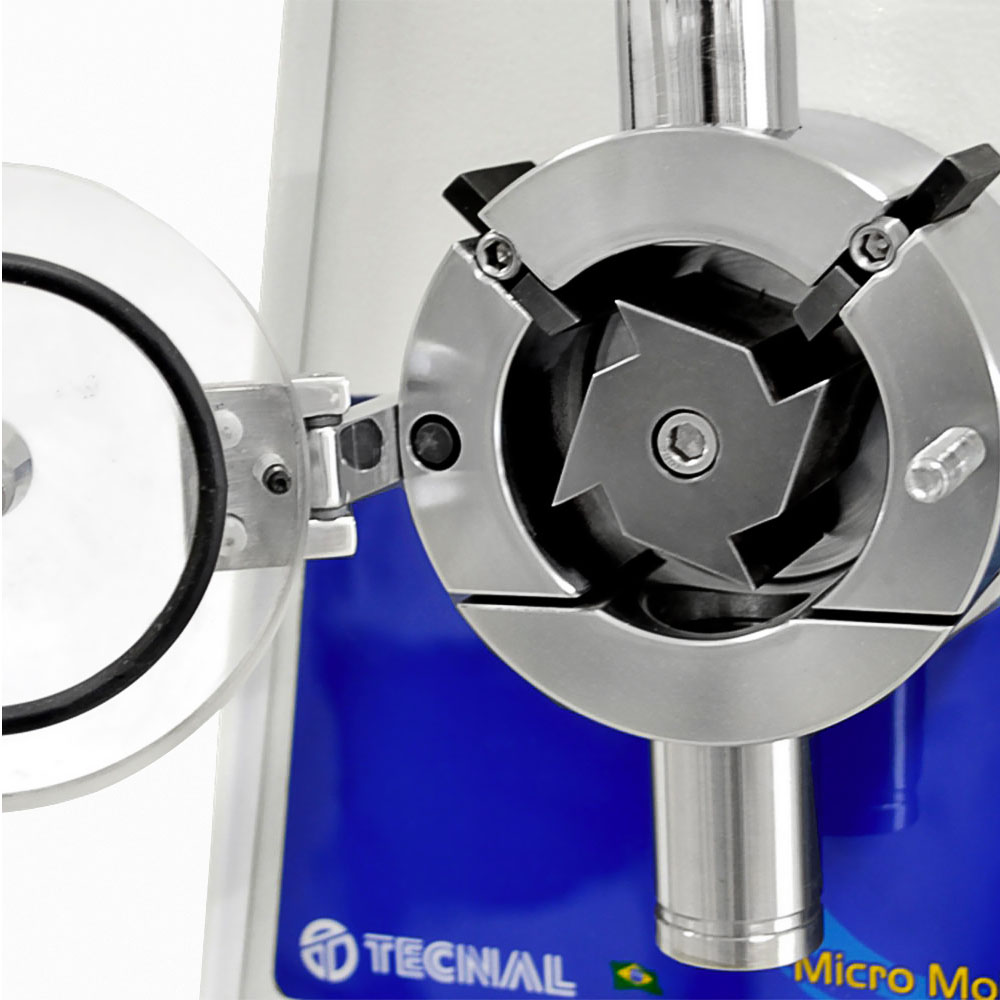

  • Grinding chamber: In chromed steel with 2 adjustable knives in high hardness special steel and anti-oxidation treatment
  • Cover: In clear acrylic
  • Cabinet: In carbon steel with anti-corrosive treatment and electrostatic painting
  • Dimensions: W=270 x D=510 x H=400 mm
  • Weight: 28 kg
  • Power: 500 Watts
  • Voltage: 220 Volts
  • ACCOMPANIES: - 02 extra fuses - 03 stainless steel sieves with mesh 10, 20, 30 - Instruction manual with warranty term
