Used for the digestion of bagasse of sugar cane, for further analysis of percentage by mass of apparent sucrose (POL) and total reducing sugars (ART).
Sugar & Ethanol
Food, Beverage & Animal Nutrition
Environmental, Waters & Effluents
Plant & Soil Science
Pharmaceutical & Cosmetics
Microbiology & Biotechnology
Chemistry & Petrochemicals
  • It has a circuit breaker, which is electrically safer than traditional fuses (which cannot be applied at high powers)
  • It has a protective cover for the belt, which promotes the isolation of the operator from the moving parts of the equipment
  • It has a timer with an audible alarm that indicates the end of the extraction, thus benefiting the analyst, who does not need to manually set this time
  • Easily programmable
  • Carbon steel structure with anti-corrosive treatment and electrostatic painting, increasing lifespan useful equipment
  • Base with rubberized coating, reducing the risk of accidents due to the existence of a smaller area slippery at the base of the equipment, providing physical stability
  • Bearing with a cooling system that prevents premature wear of the gears
  • Cup with side handles and locks for quick coupling, providing greater security to the analyst
  • Stainless steel shaft that is more resistant to corrosion
  • Stainless steel bowl
  • Protection system that prevents the knife from working without the cup being attached
  • 220 Volts three-phase equipment
  • Standardized industrial plug
  • Important for the preparation of the sample that will be analyzed later to determine the quality of sugar cane
  • Compact, saves space where it's used
  • South Africa type knife shape, which allows larger and faster extraction
  • Easy installation and use
  • It has a refrigeration system that prevents the sample from overheating, preventing degradation of present sugars
  • It can be used together with the TE-186 thermostatted bath, generating enormous water savings
  • Rigid Quality Control, in which checks and tests ensure the perfect functioning of the equipment, providing safety and client satisfaction
  • Client service, to answer questions and provide explanations about the equipment and methodologies
  • Possibility of adaptations according to the client's needs, makes the equipment already of line a special equipment.
  • Rotation: Fixed at 7000 RPM

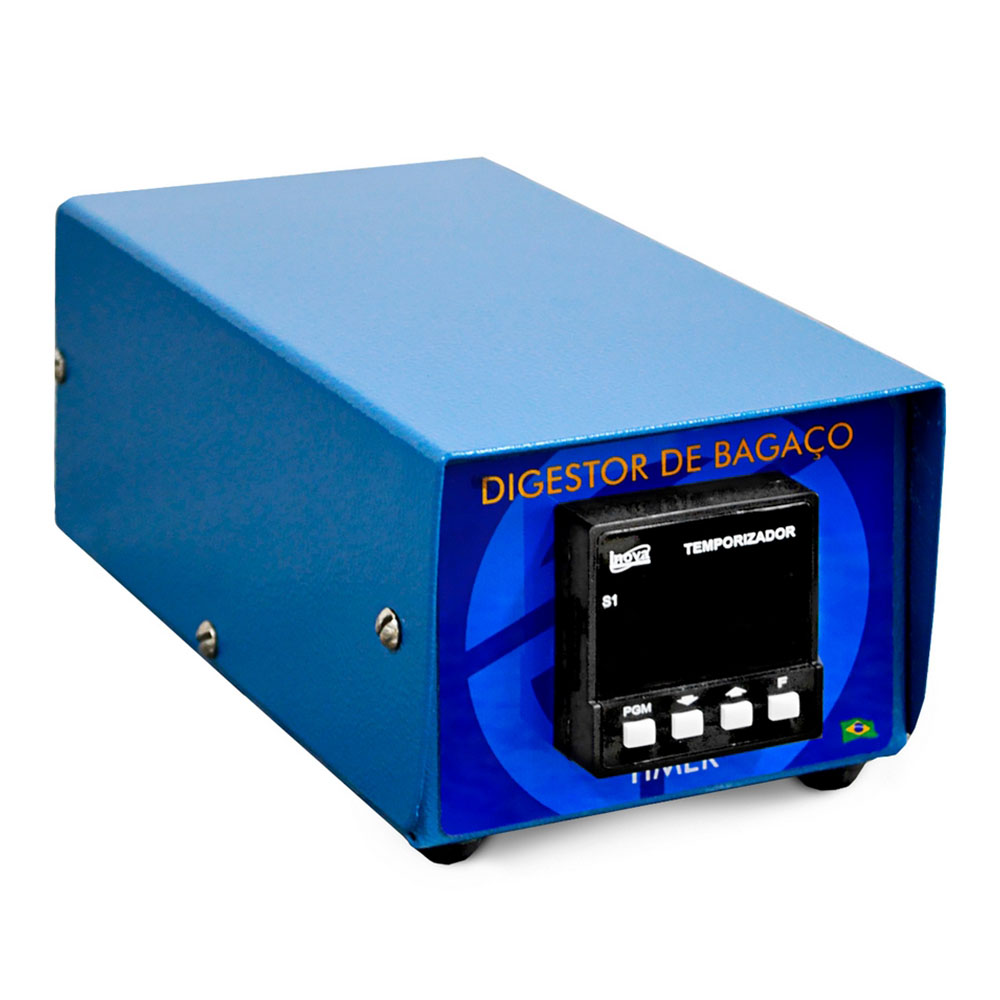

  • Timer: Digital - Programmable MM:SS. Automatic shutdown at the end of the programmed time
  • Engine: 2 HP three-phase induction
  • Bearing: Water cooled

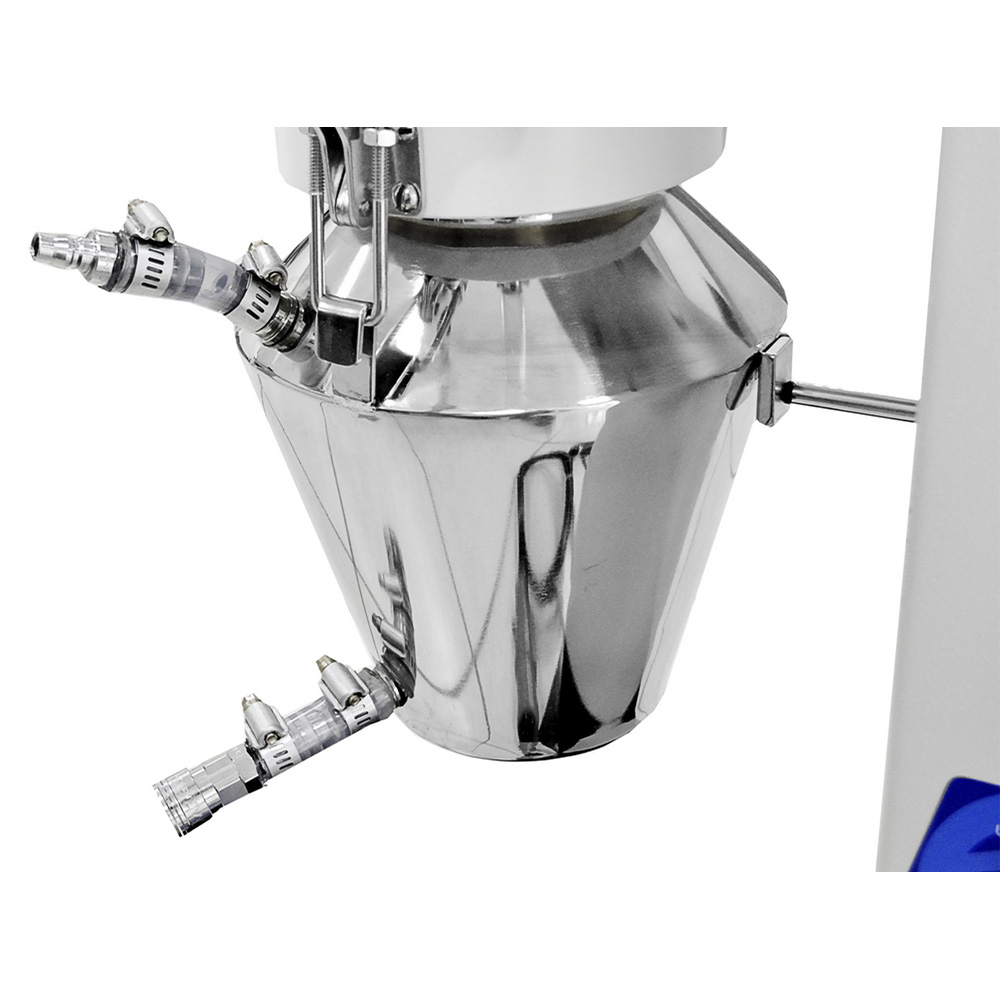

  • Cup: Cooled in polished 304 stainless steel, spouts with quick coupling and capacity of 4 liters

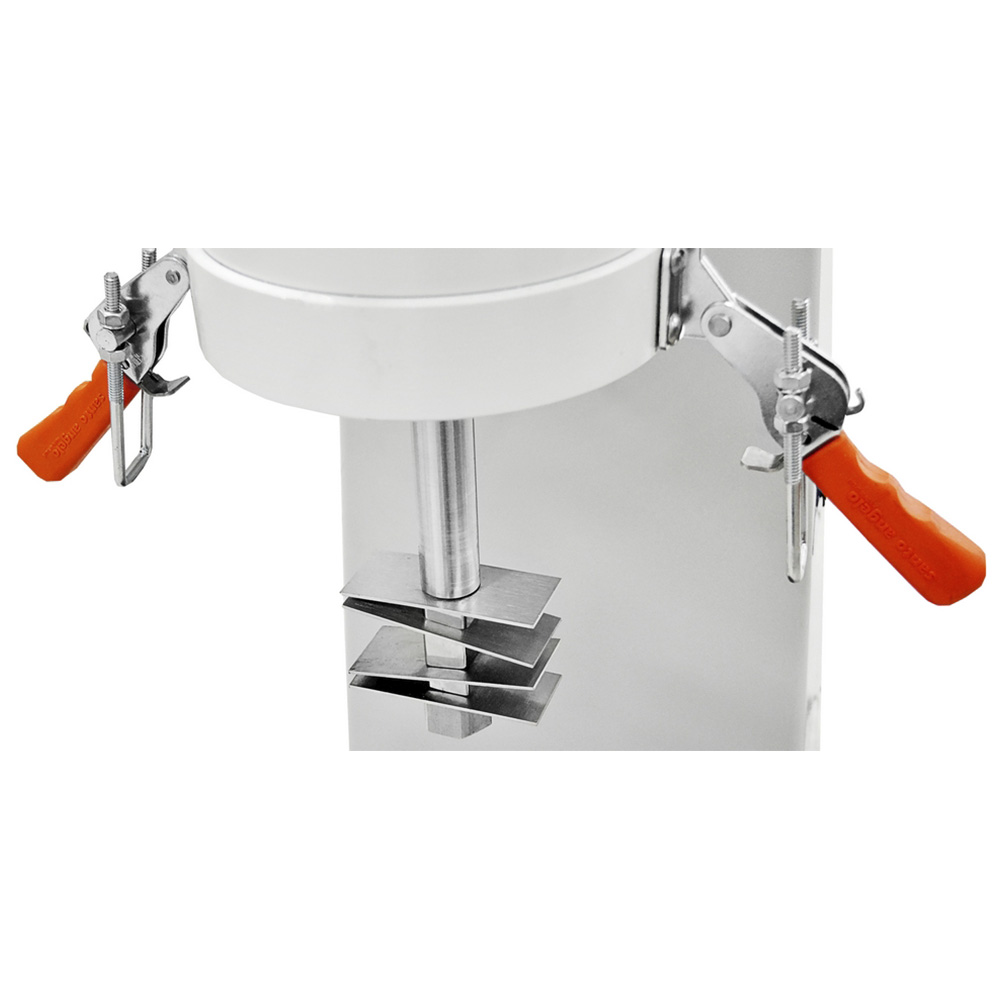

  • Fixing the cup: Side grips with safety locks (quick coupling)
  • Knives: 3 or 4 South African rectangular knives, 36x85 mm in 304 stainless steel
  • Safety: Belt circuit breaker and protective cover
  • Base: With rubber coating
  • Shaft: In 304 stainless steel and knife fixation system
  • Cabinet: In carbon steel with anti-corrosive treatment and electrostatic painting
  • Dimensions: W=300 x D=500 x H=760 mm
  • Weight: 90 kg
  • Power: 1200 Watts
  • Voltage: 220 Volts three-phase
  • ACCOMPANIES: - 01 stainless steel cooling cup 304 - 02 hoses with quick coupling - Digital Instruction Manual with Warranty Term
