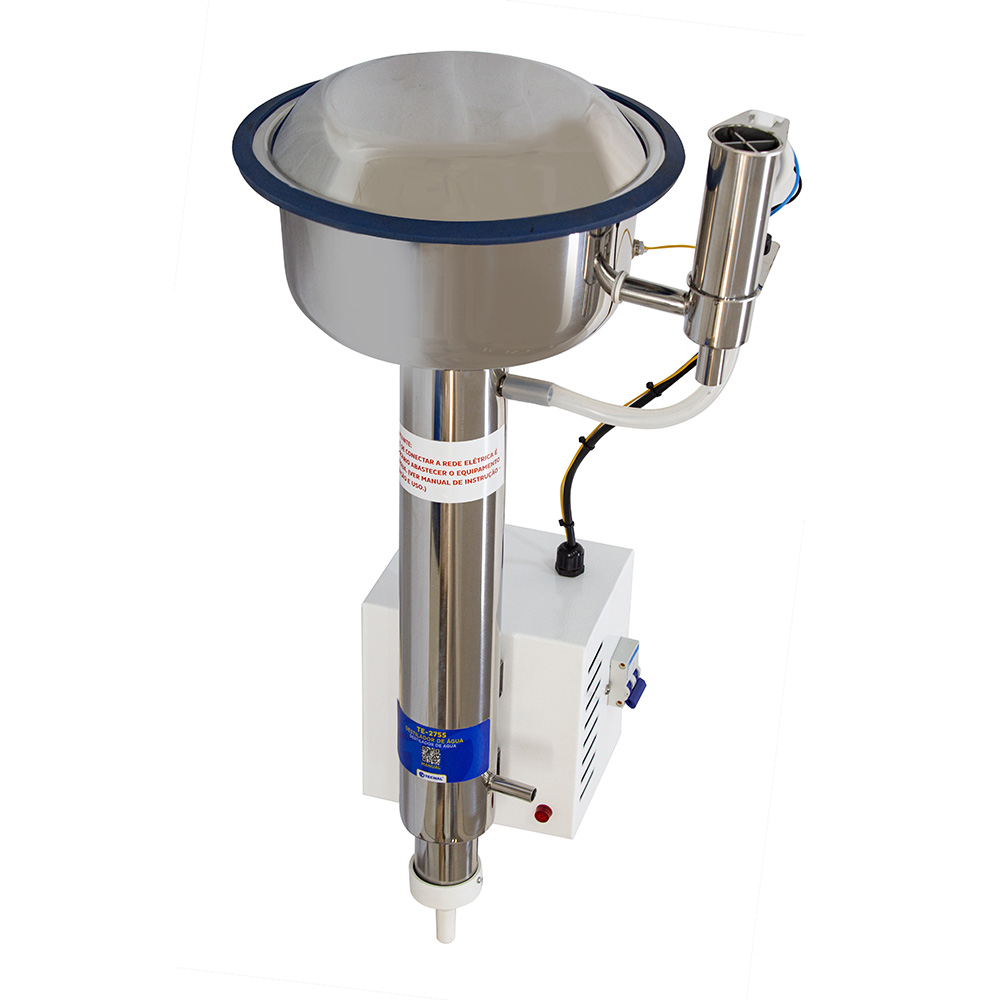

WATER DISTILLER TYPE PILSEN
WATER DISTILLER TYPE PILSEN
TE-2755
Used in the water purification process.
Sugar & Ethanol
Food, Beverage & Animal Nutrition
Environmental, Waters & Effluents
Plant & Soil Science
Pharmaceutical & Cosmetics
Microbiology & Biotechnology
Chemistry & Petrochemicals
- Control box in order to house the components, as well as protect them from probable moisture from leaks, ensuring safety and durability
- Adjustable fixing rod for any cases where the wall is uneven, ensuring the leveling of the equipment
- Electrical protection through a bipolar circuit breaker to protect the equipment, preventing damage to components and users in the process and in the electrical supply

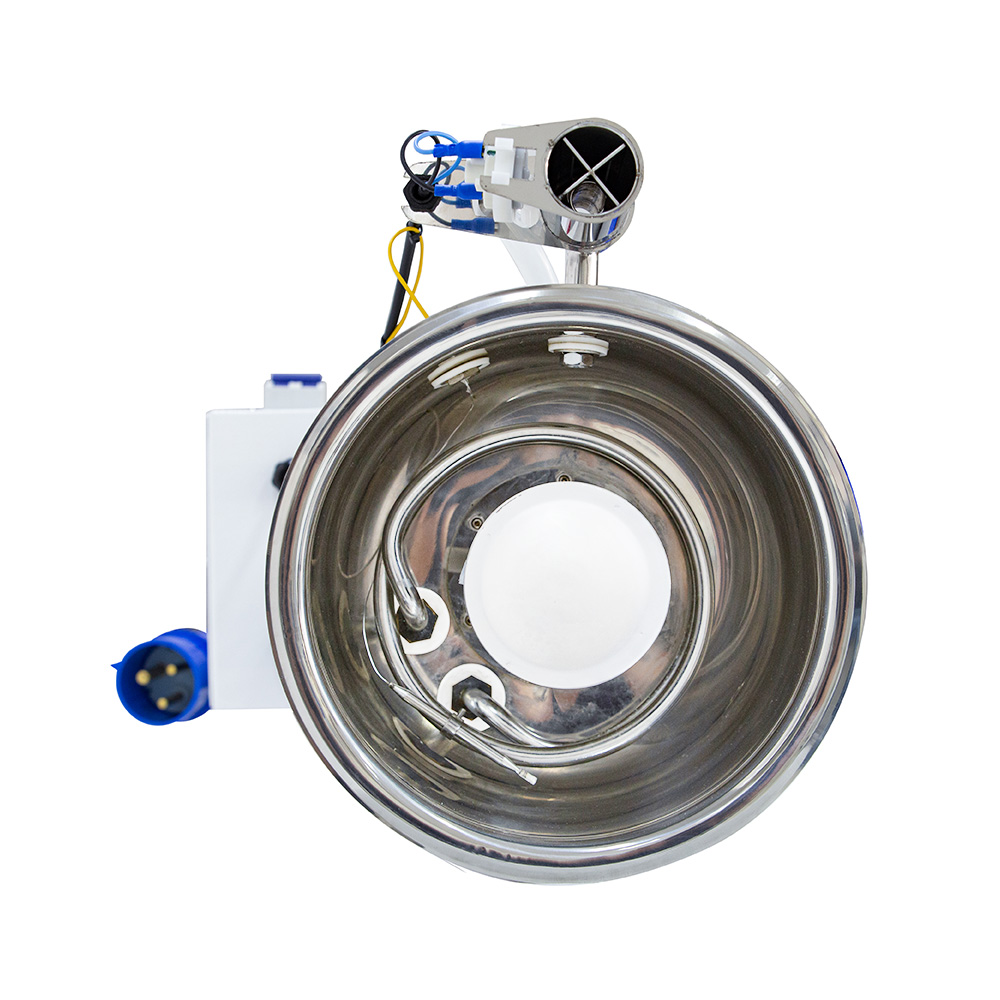

- Bowl and distillation tube in 304 stainless steel, for longer service life
- 304 stainless steel armored resistance for greater durability
- Protection system against overheating due to lack of water, ensuring safety
- Cover with a retractable sealing ring that allows it to be removed for easy internal cleaning of the bowl
- Rigid Quality Control, in which checks and tests guarantee the perfect functioning of the equipment, providing safety and client satisfaction
- Client service, to answer questions and provide explanations about the equipment and methodologies.
- Conductivity: Up to 5.0 µS/cm (considering 310 µS/cm input conductivity)
- Yield: 5±1 liters/hour
- Consumption: 30L/per liter of distilled water (Test reference with inlet flow in 2.5L/min)
- Safety: Automatic shutdown in case of lack of water by pressure switch and bulb thermostat in contact with the resistance
- Structure (Condenser and Boiler): Polished 304 stainless steel
- Boiler Seal: Silicone boiler sealing system
- Fixing bracket: In carbon steel with electrostatic painting with anti-corrosive treatment and level adjustment
- Housing box for electrical components: In carbon steel with electrostatic painting, anti-corrosion treatment
- Dimensions: W=330 x D=270 x H=730 mm
- Weight: 5 kg
- Power: 4000W
- Voltage: 220V +/-5% 50/60Hz
- ACCOMPANIES: - 03 screws with bushing - Support for fixing - Instruction Manual with Warranty Term
Tecnal offers solutions in equipment for laboratories in various segments of activity, focused on the proper functioning of products, ease of use and high accuracy of results!
