- Capacity for up to 3 samples, with individual control by valves, replacing the traditional filtration system with the use of kitassato, Buchner funnel and vacuum pump
- Perforated fabric allowing filter paper coupling (Ø47mm)
- Operation via vacuum pump
- Autoclavable teflon cups, enabling sterilization for Microbiology applications
- Top fitting to accommodate 100ml capacity Teflon funnel
- Stainless steel structure, increasing the service life of the equipment.
- Capacity: 3 proofs
- Valve: independent ball for each test

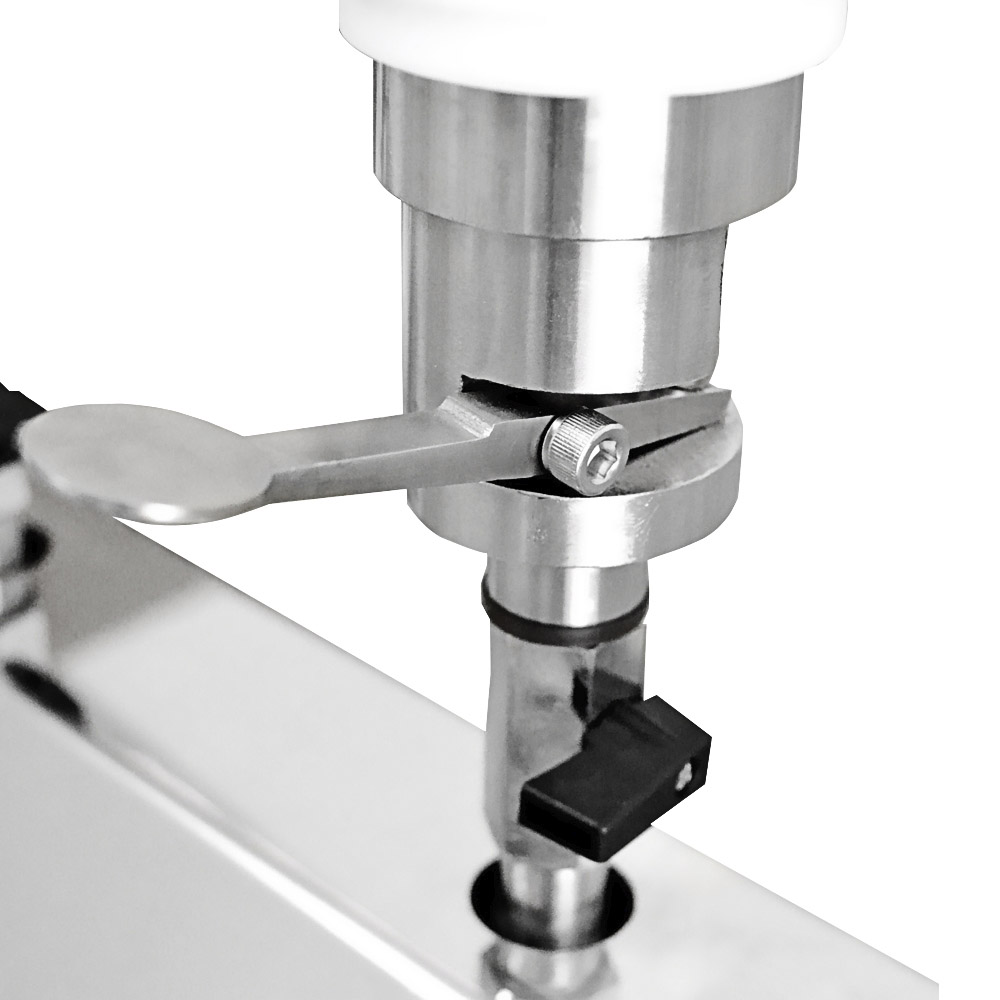

- Lever: which provides independent vacuum breaking
- Perforated screen: 0.37 mm( porosity) and Ø35mm allowing coupling of Ø47mm filter paper
- Filtration area: 9.6 cm2
- Funnel: Inlet diameter: 67mm and outlet diameter: 49.8 mm

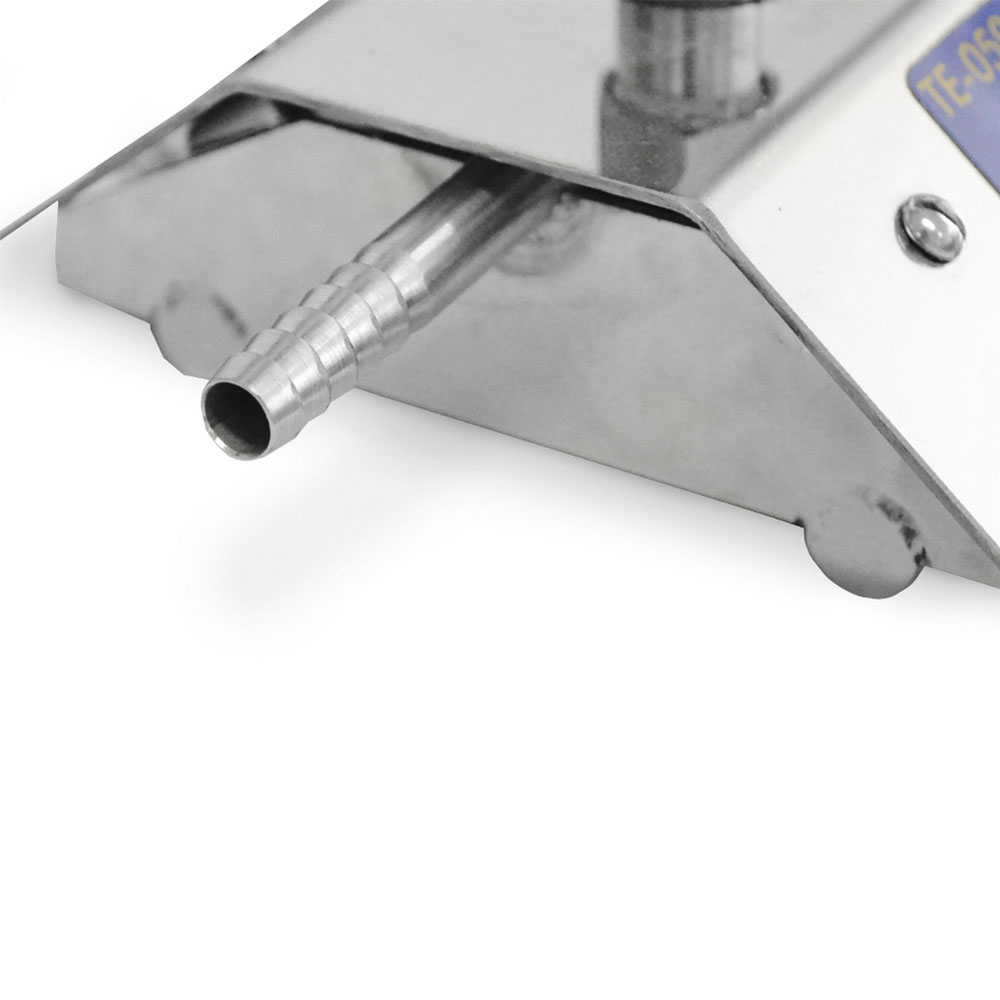

- Olive system: for vacuum application
- Top fitting: to accommodate teflon funnel with 100ml capacity
- Case: 304 stainless steel
- ACCOMPANY: - Instruction Manual with Warranty Term
Tecnal offers solutions in equipment for laboratories in various segments of activity, focused on the proper functioning of products, ease of use and high accuracy of results!
