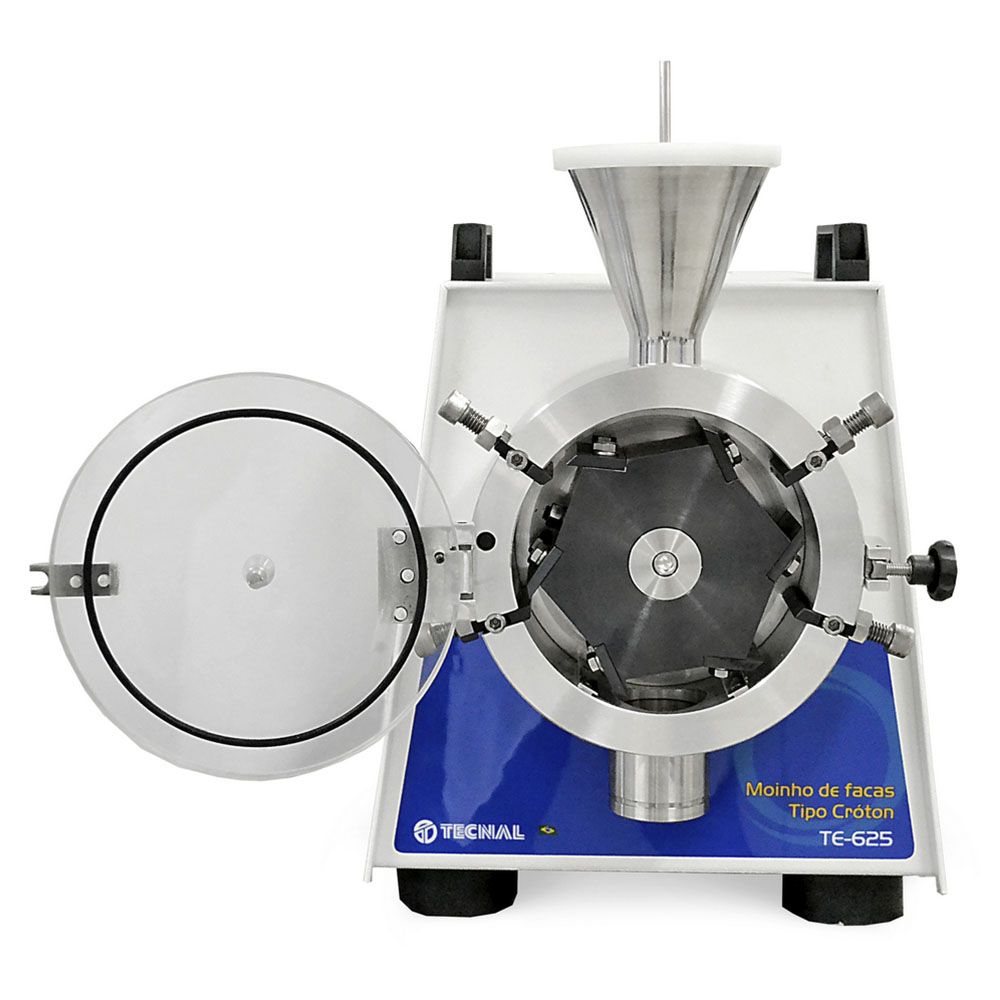

CROTON KNIVES MILL

R-TE-625

Used for grinding leaves plastic pellets wood roots tubers and dry leathers of thickness less than or equal to 1.5mm.

Consult one of our specialist

It has a lid opening sensor ensuring safety
Compact and easy to use equipment
Greater speed in the grinding process
Grinding in continuous flow
Acrylic cover for sample display
Easy and quick adjustment of the rotor according to the sample
Accompanies 3 easy to change 10 20 and 30 mesh sieves providing agility and practicality
It has handles that facilitate transportation and displacement of the equipment
The presence of rubber damping feet prevents chatter providing stability
The knives are made of special steel produced and processed to reach a high degree of quality for having high hardness and high resistance to wear
Strict Quality Control in which checks and tests guarantee the perfect functioning of the equipment providing safety and customer satisfaction
Customer service to answer questions and provide explanations about the equipment and methodologies
Possibility of adaptations according to the needs of the customer makes the equipment already in line a special equipment.

Rotation: Fixed at 926 RPM
Motor: Three-phase induction 1 CV
Rotor: 6 fixed knives in special steel of high hardness and anti-oxidation treatment
Grinding: By continuous flow
Grinding capacity: ± 15 kg / hour (depending on the material to be ground)
Safety: Allows the knife to rotate only when the lid is closed
Grinding chamber: In aluminum with 4 adjustable knives in special steel of high hardness and anti-oxidation treatment
Cover: In clear acrylic
Cabinet: In carbon steel with anti-corrosive treatment and electrostatic painting
Dimensions: W = 350 x D = 460 x H = 380 mm
Weight: 60 kg
Power: 750 Watts
Voltage: 220 Volts
Accompanies: - 02 extra fuses - 03 Stainless steel screens with mesh 05, 10, 20 - Instruction Manual with Warranty Term
