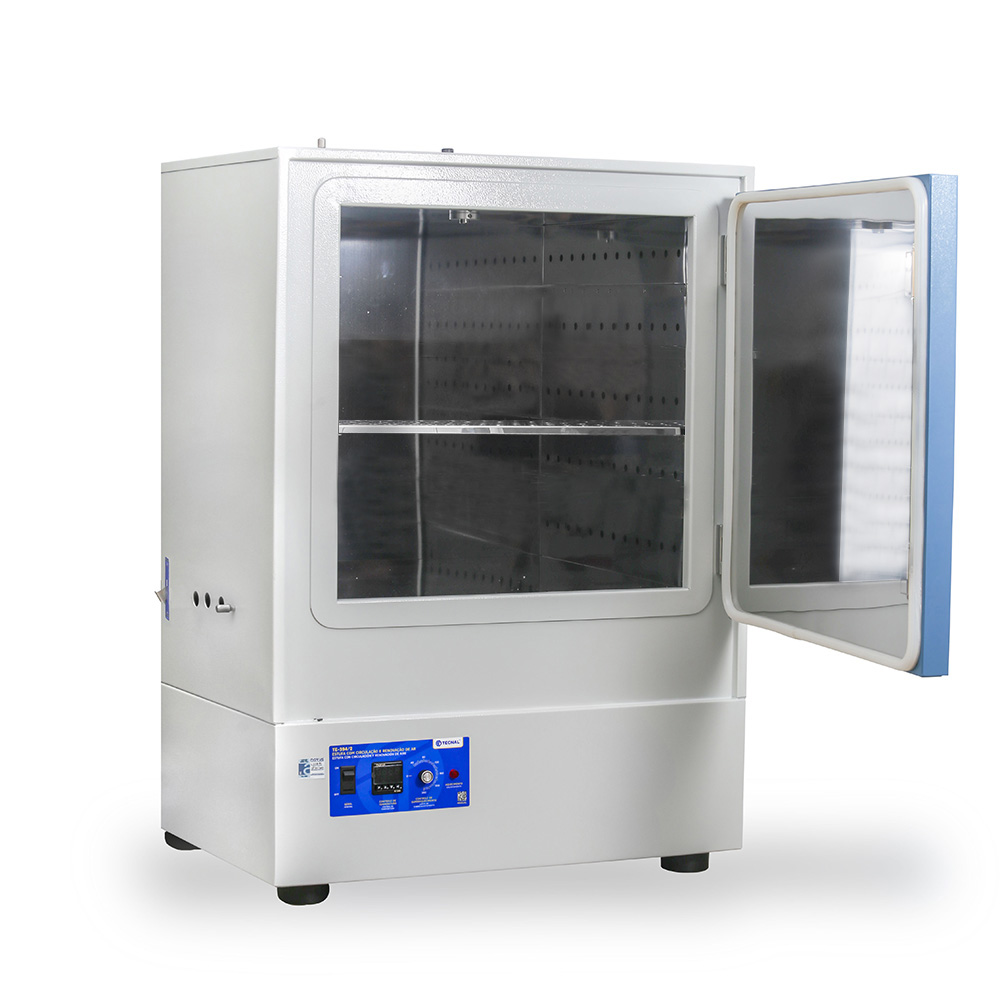

DRYING AND STERILIZATION GREENHOUSE W CIRCULATION
DRYING AND STERILIZATION GREENHOUSE W CIRCULATION
TE-394/1-MP
Used for drying material, glassware and samples in general, and can be used to determine moisture, whether or not it has a circulation and air renewal system.
Sugar & Ethanol
Food, Beverage & Animal Nutrition
Environmental, Waters & Effluents
Plant & Soil Science
Pharmaceutical & Cosmetics
Microbiology & Biotechnology
Chemistry & Petrochemicals
- Double wall insulation allows better temperature control, since it minimizes losses during the heating process
- This perfect insulation also allows for energy savings since the use of high power resistors is not necessary
- The stainless steel walls facilitate cleaning and are much more durable due to resistance against corrosion
- The safety thermostat works independently of microprocessor control and is activated in the event of a system failure, preventing the temperature from exceeding the set limit
- Greater security and precision of the analysis
- Air circulation and renewal system providing an effective internal ventilation system, promoting greater temperature homogeneity at different points within the greenhouses
- Air circulation and renewal system provides a more efficient and quick drying of the samples inserted there
- Air circulation and renewal system extends the service life of the stainless steel internal cabinet, preventing corrosion
- Thermomechanical system that must be programmed with at least 10% above the set temperature, thus protecting the resistance of the equipment and the samples that are packaged.
- Temperature: Ambient + 7 ° C to 150 ° C
- Temperature control: Microprocessed digital with PID System and RBC calibration certificate
- Sensor: Type 'J'
- Control accuracy: ± 1 ° C
- Uniformities: ± 0.5 ° C (Difference between maximum and minimum) - study carried out at 60 ° C in 9 points ± 1.5 ° C (Difference between maximum and minimum) - study carried out at 120 ° C in 9 points
- Measurement uncertainty: 0.9 ° C
- Stability: 0.2 ° C
- Capacity: 2 trays 130 mm apart
- Motor: ¼ CV induction
- Circulation system: Internal ventilation in the horizontal direction
- Circulation / Renewal: Manual system to select the circulation type
- Insulation: Thermal with double layer of ceramic fiber and glass wool
- Safety: Overheat protection system
- Sealing: Molded silicone door
- Inner chamber: Polished stainless steel
- Cabinet: In carbon steel with anti-corrosion treatment and electrostatic painting
- Internal dimensions: W = 400 x D = 400 x H = 400 mm
- Volume: 64 liters
- External dimensions: W = 600 x D = 500 x H = 780 mm
- Weight supported per tray: Up to 12kg
- Weight: 60 Kg
- Power: 1000 Watts
- Voltage: 220 Volts
- Accompanies: - 01 Tray - 02 extra fuses - Instruction Manual with Warranty Term
Tecnal offers solutions in equipment for laboratories in various segments of activity, focused on the proper functioning of products, ease of use and high accuracy of results!
