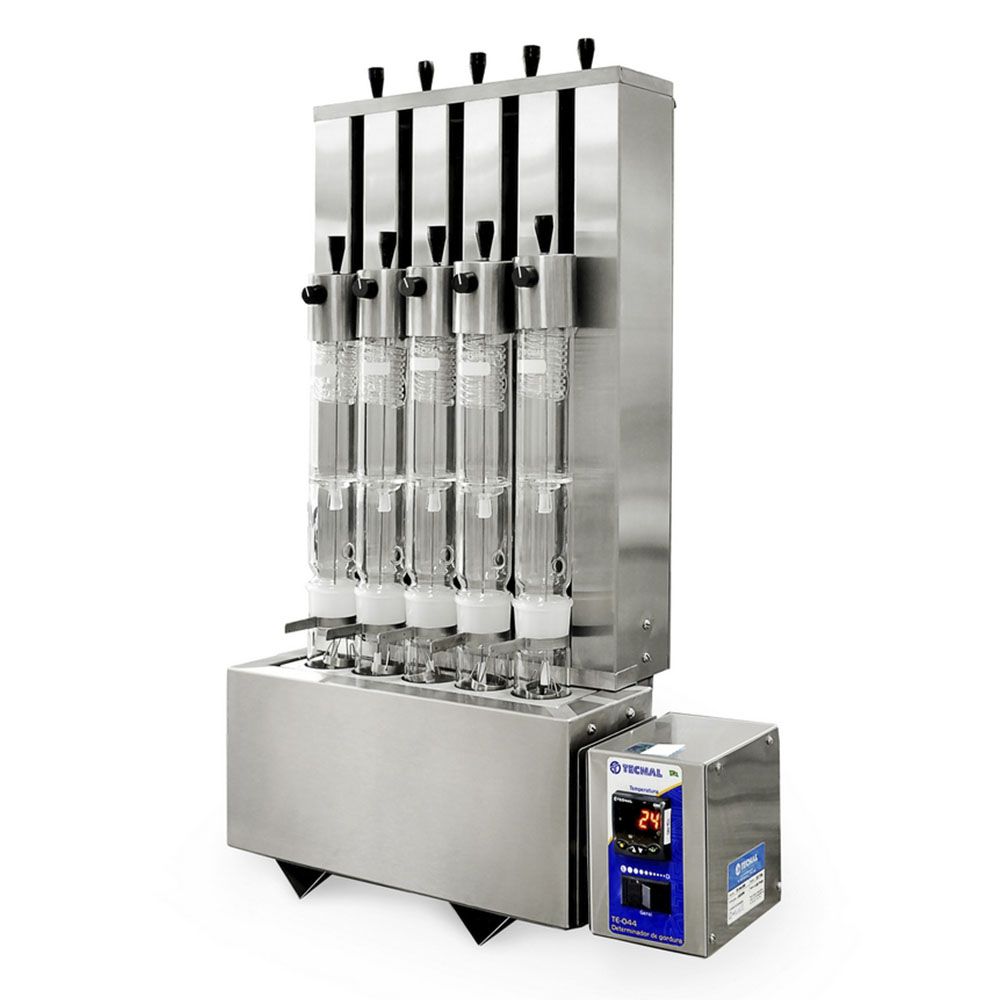

SYSTEM FOR DETERMINING FAT

TE-044-5/50

Used in the extraction of fat and lipids, using a hot solvent, following the Goldfish method.

Consult one of our specialist

Compact equipment
It has a microprocessed temperature control (PID), which causes less variations in temperature and less interference in the process, providing greater efficiency
High efficiency in solvent recovery. Normally, 90% recovery can be achieved with a thermostatic bath (where we suggest using a TE-2005 or TE-184 bath)
Faster extraction when compared to the Soxhlet method, increasing efficiency and decreasing time analysis
It has shielded resistances in the equipment itself, avoiding the contact of the solvent with the heating, avoiding accidents in the laboratory
Water distribution system evenly between the glassworks, providing more cooling homogeneous and greater efficiency of the solvent recovery process
Cabinet completely made of 304 stainless steel, considerably increasing the service life of the equipment

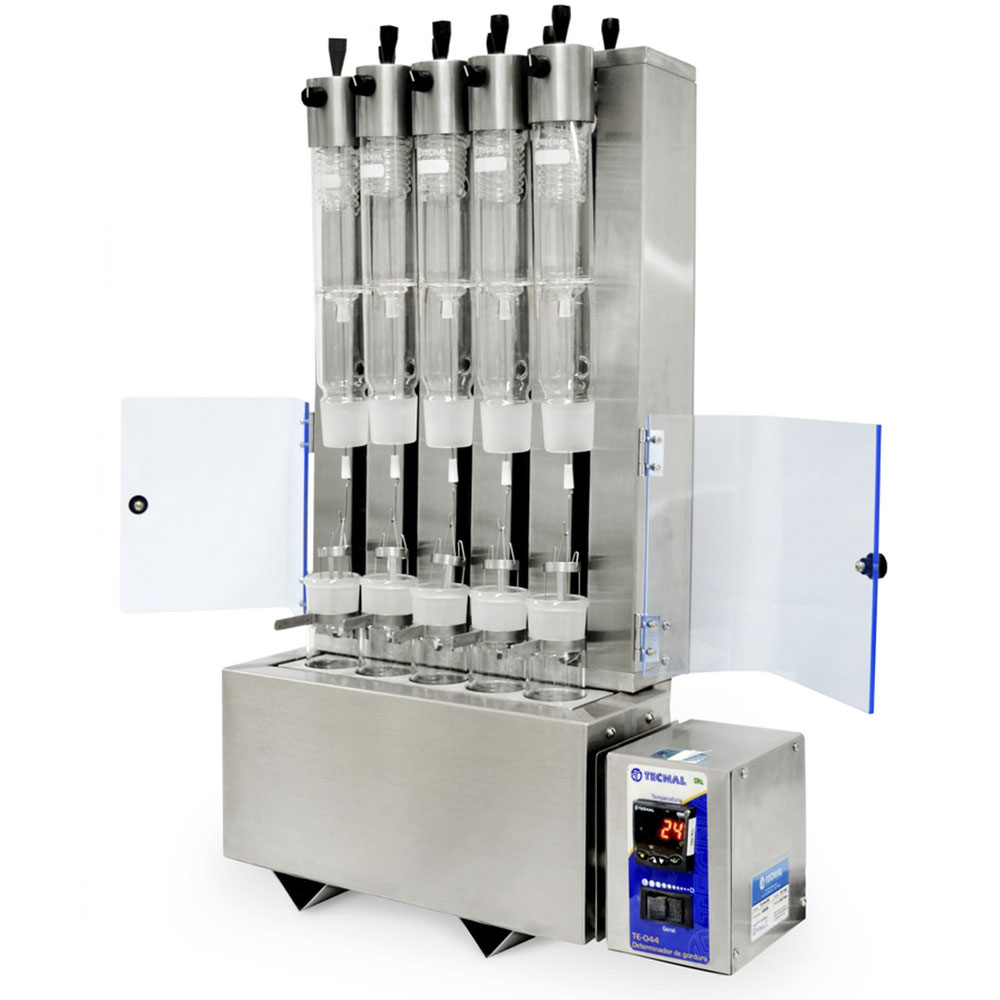

Acrylic protection both for the analyst's safety and to prevent drafts from interfering with the environment in the process
Teflonized samples basket and sticks, avoiding attacks by the solvents used
Straight-faced aluminum block for flat-bottomed trailer that provides even heat distribution homogeneous in the reboiler
Compatible with electrical protection system DR (Residual Differential), providing security
More energy-efficient (1400 Watts of power on the TE-044-5 / 50 and 1700 Watts on the TE-044-8 / 50) compared to a Soxhlet TE-188 system (2400 Watts of power), saving electricity
Strict Quality Control, in which checks and tests guarantee the perfect functioning of the equipment, providing security and customer satisfaction
Customer service, to answer questions and provide explanations about the equipment and methodologies
Possibility of adaptations according to the customer's needs, makes the equipment already in line a special equipment.

Temperature: Ambient + 7 ° C to 200 ° C
Temperature control: Microprocessed digital with PID system and RBC calibration certificate
Sensor: Type "J"
Control accuracy: ± 1 ° C
Uniformity: ± 3 ° C

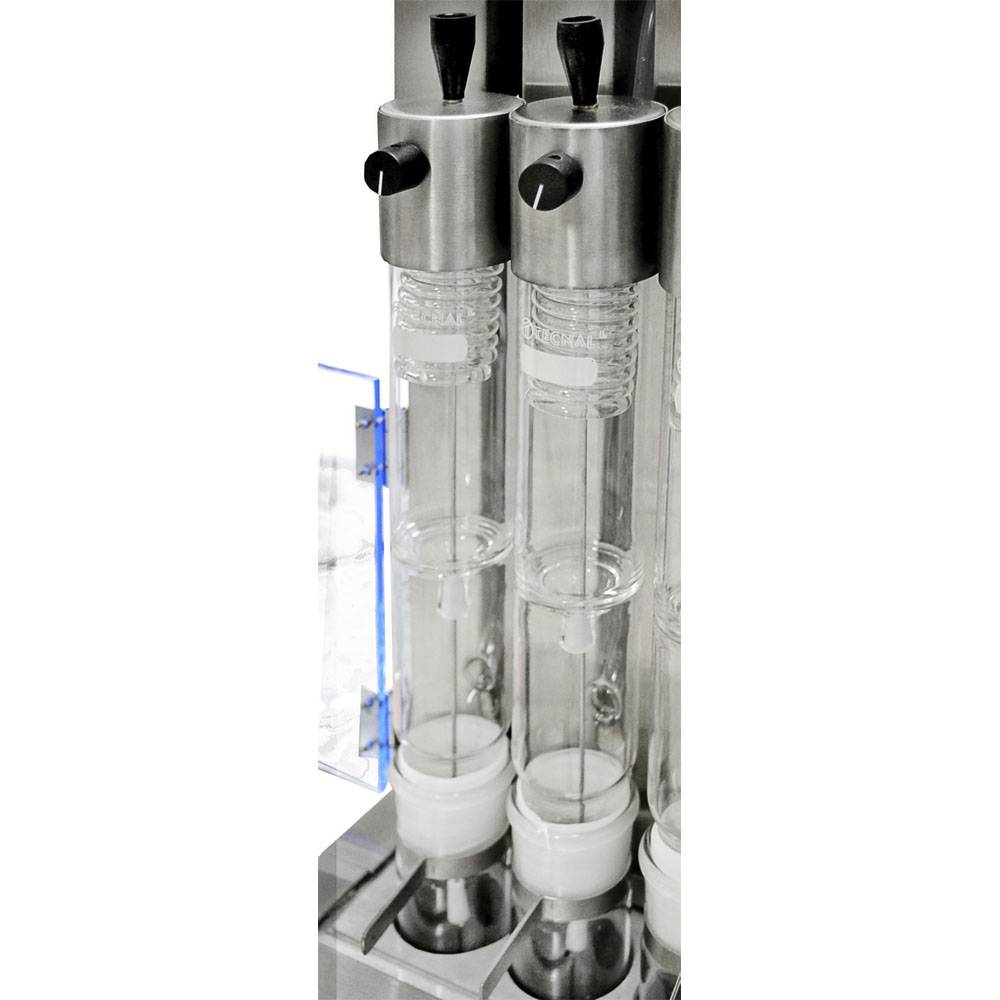

Extraction / recovery system: Extractor / recuperator coupled with serpentine-type condenser, made of borosilicate glass, immersion rod for handling the sample basket, teflon latch system for solvent recovery and acrylic protection against air circulation in the extractor.
Safety: Armored resistance avoiding contact with solvents
Cabinet: 304 stainless steel
Dimensions: W = 470 x D = 215 x H = 900 mm
Weight: 20 kg
Power: 1400 Watts
Voltage: 220 Volts
Include: - 02 extra fuses - 05 Reboiler in 190ml borosilicate glass - 05 Teflon-coated 304 stainless steel basket - Instruction Manual with Warranty Term
