CONCENTRATOR
CONCENTRATOR
TE-019

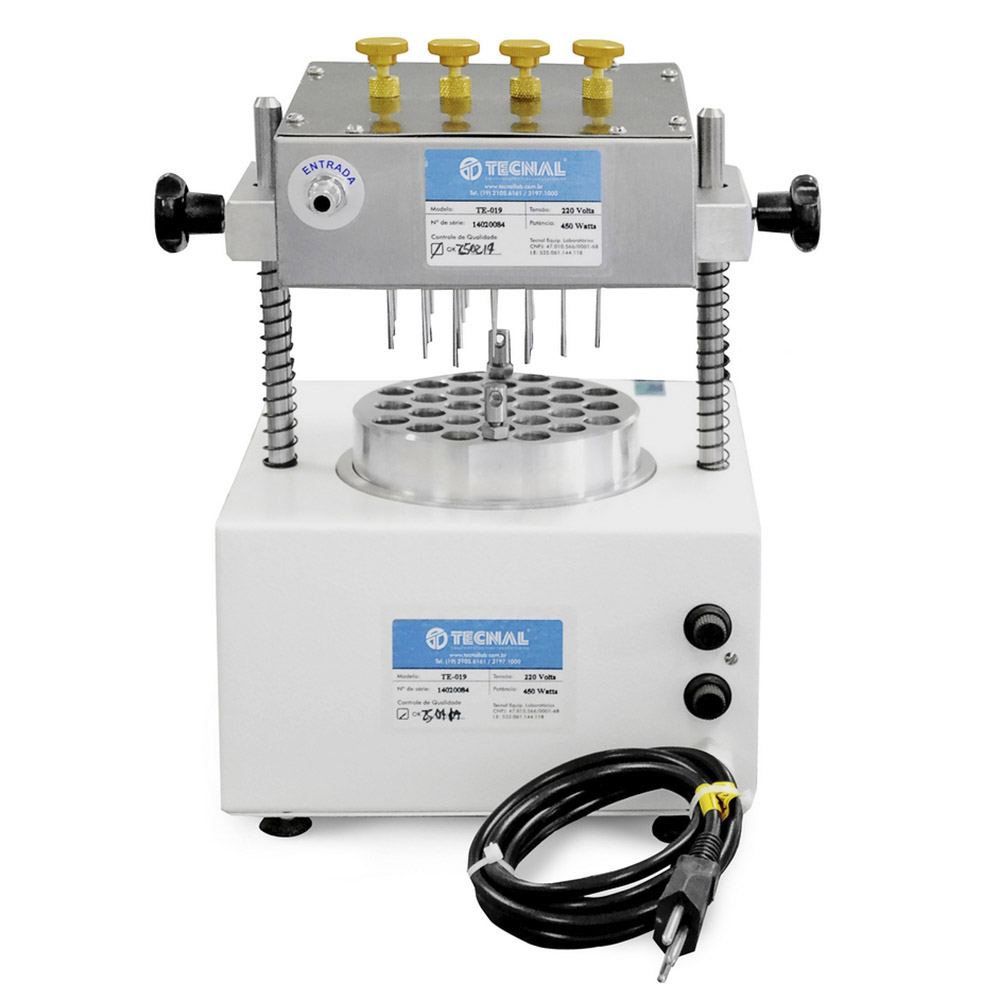

Used to concentrate small volume samples, by heating and nitrogen injection; being widely used in waste laboratory and pharmaceutical industry.
Sugar & Ethanol
Food, Beverage & Animal Nutrition
Environmental, Waters & Effluents
Plant & Soil Science
Pharmaceutical & Cosmetics
Microbiology & Biotechnology
Chemistry & Petrochemicals
- Temperature: Ambient + 7 ° C to 150 ° C
- Temperature controller: Microprocessed digital with PID system and RBC calibration certificate
- Sensor: PT-100
- Accuracy: ± 1 ° C
- Uniformity: ± 2 ° C
- Timer: Digital - Programmable MM: SS. Automatic heating shutdown at the end of the programmed time
- Block capacity (to choose): - 28 housings with Ø 16 x 85 mm; - 40 housings with Ø 11 x 35 mm; - 40 housings with Ø 13.5 x 55 mm

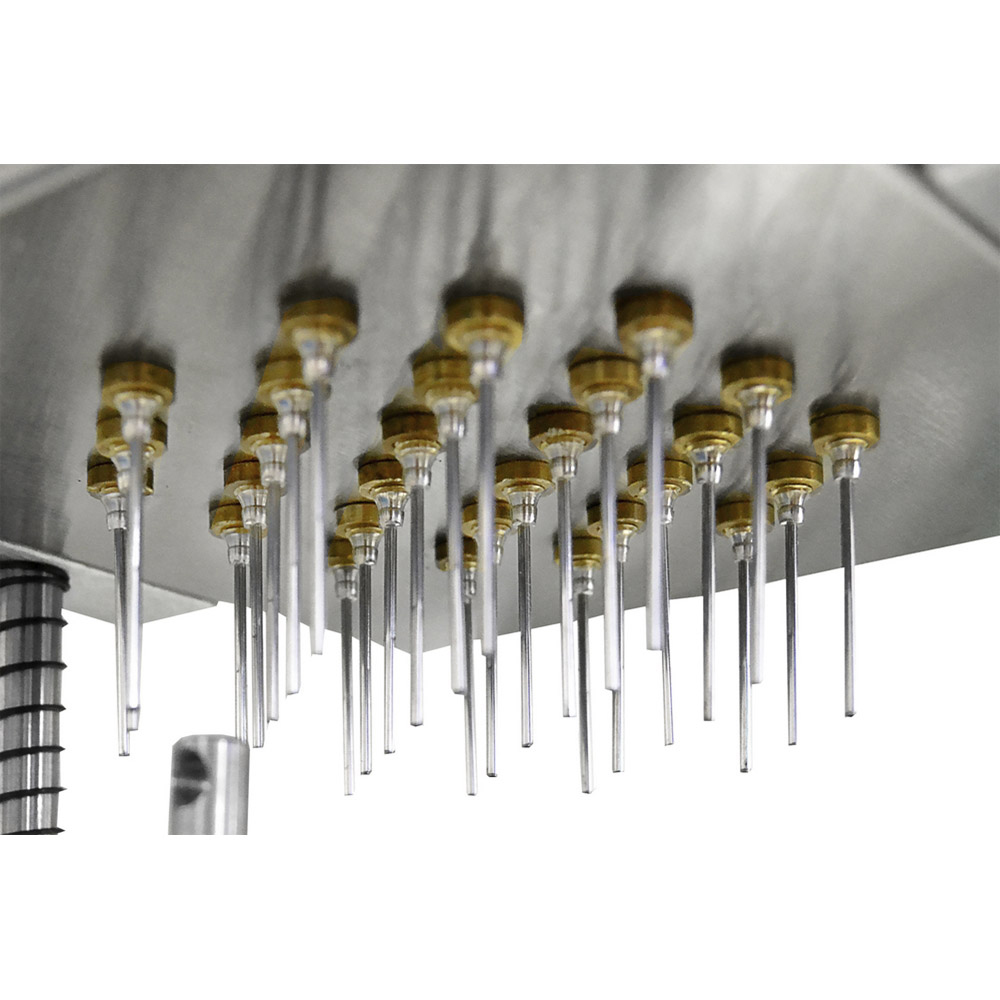

- Injection system: Made up of needles in 304 stainless steel and regulating valves for nitrogen flow or compressed air (4 valves for blocks of 40 housings and 3 valves for blocks of 28 housings)
- Safety: Shielded resistance avoiding contact with the reagen
- Cabinet: In carbon steel with anti-corrosive treatment and electrostatic painting
- Dimensions: W = 225 x D = 340 x H = 220 mm
- Weight: 8 kg
- Power: 450 Watts
- Voltage: 220 Volts

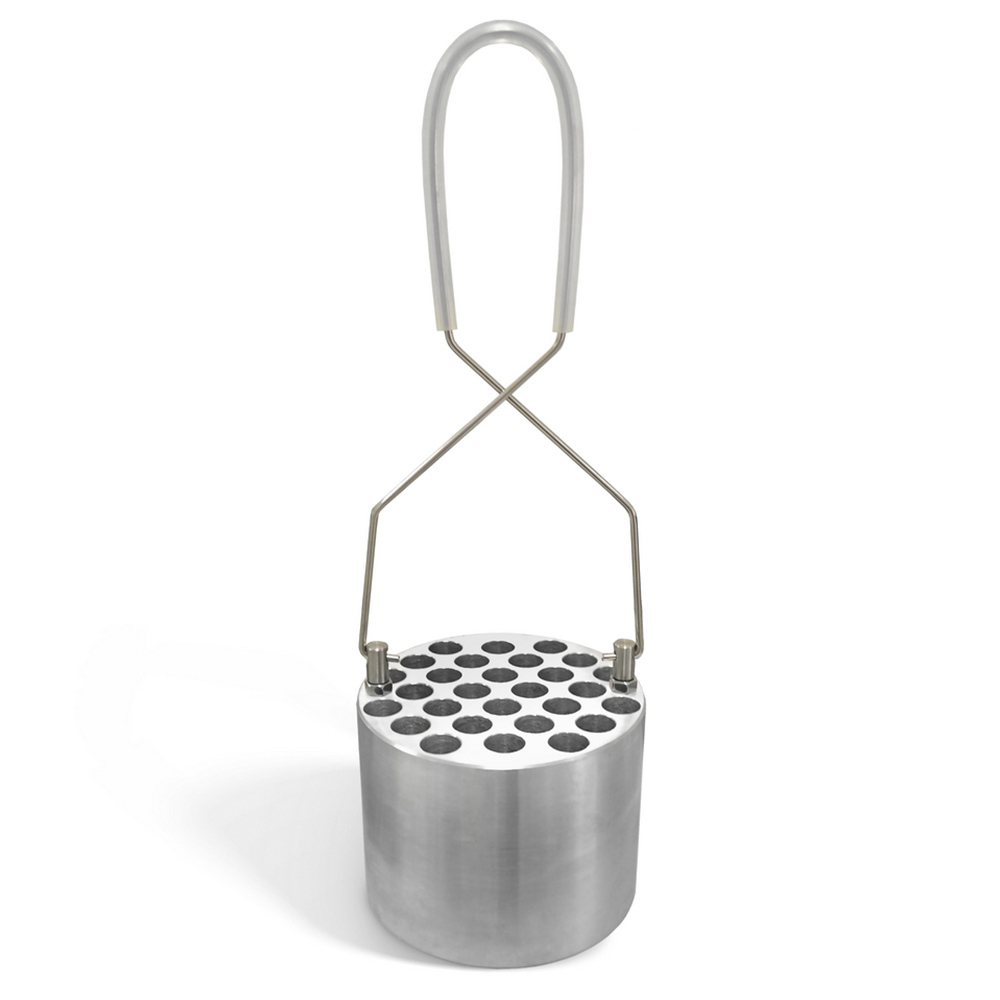

- Include: - 01 Handle for removing the block - 01 Interchangeable aluminum block - 01 Needle module - 02 extra fuses - Instruction Manual with Warranty Term
- Note: Do not include tubes
Tecnal offers solutions in equipment for laboratories in various segments of activity, focused on the proper functioning of products, ease of use and high accuracy of results!
