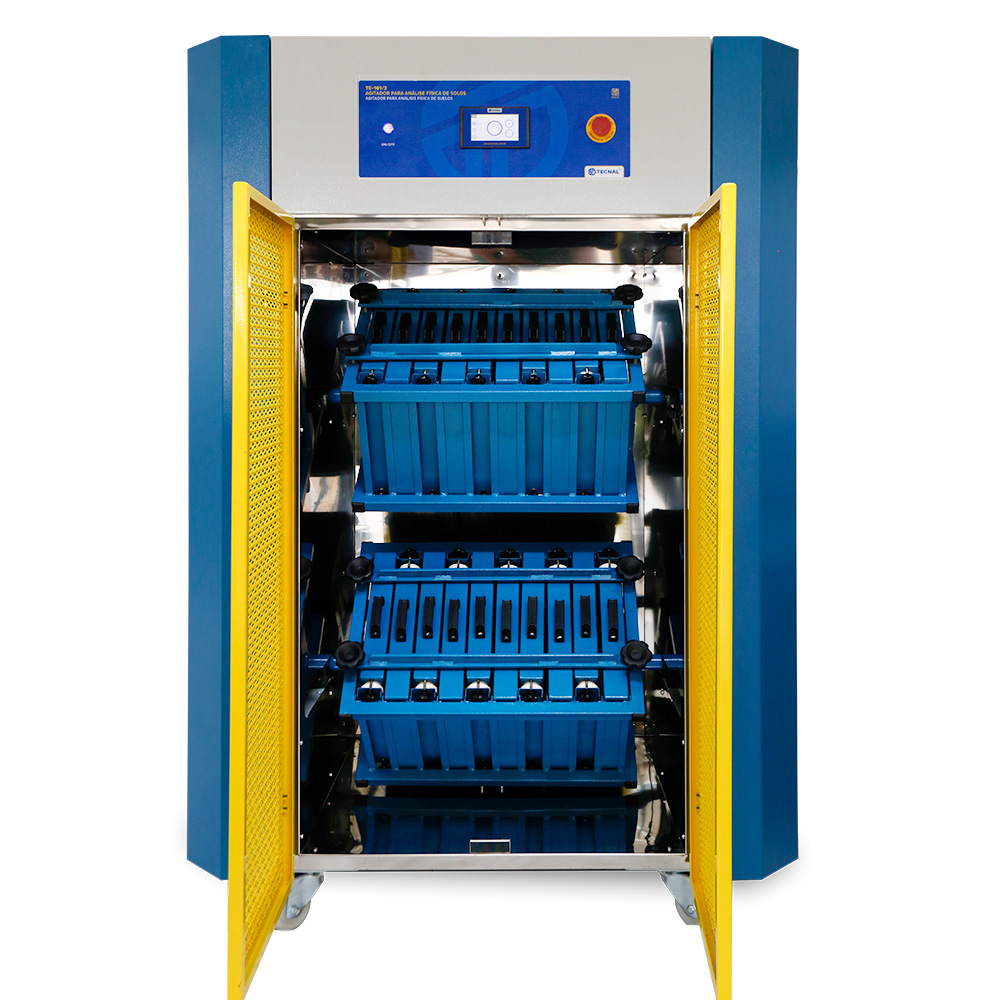

SHAKER FOR DIGITAL SOIL ANALYSIS
SHAKER FOR DIGITAL SOIL ANALYSIS
TE-161/3
Equipment used for physical analysis of the soil, for measuring granulometry through its density.
Sugar & Ethanol
Food, Beverage & Animal Nutrition
Environmental, Waters & Effluents
Plant & Soil Science
Pharmaceutical & Cosmetics
Microbiology & Biotechnology
Chemistry & Petrochemicals
- Space saving
- Modern touch interface
- Bilingual equipment
- Greater protection (fully enclosed)
- With sensors on the doors (the equipment stops shaking if the door is opened)
- Equipment with casters, facilitating movement
- Resumption of agitation in the event of a power failure of more than 10 seconds
- Easy maintenance and belt replacement.
- Rotation: 15 to 60 RPM
- Accuracy: ±5 RPM
- Control: Through a 4.3” touchscreen HMI, enabling agitation and process time control
- Stirring range: 360°
- Engine: Induction 1.5 hp
- Capacity: 120 tests

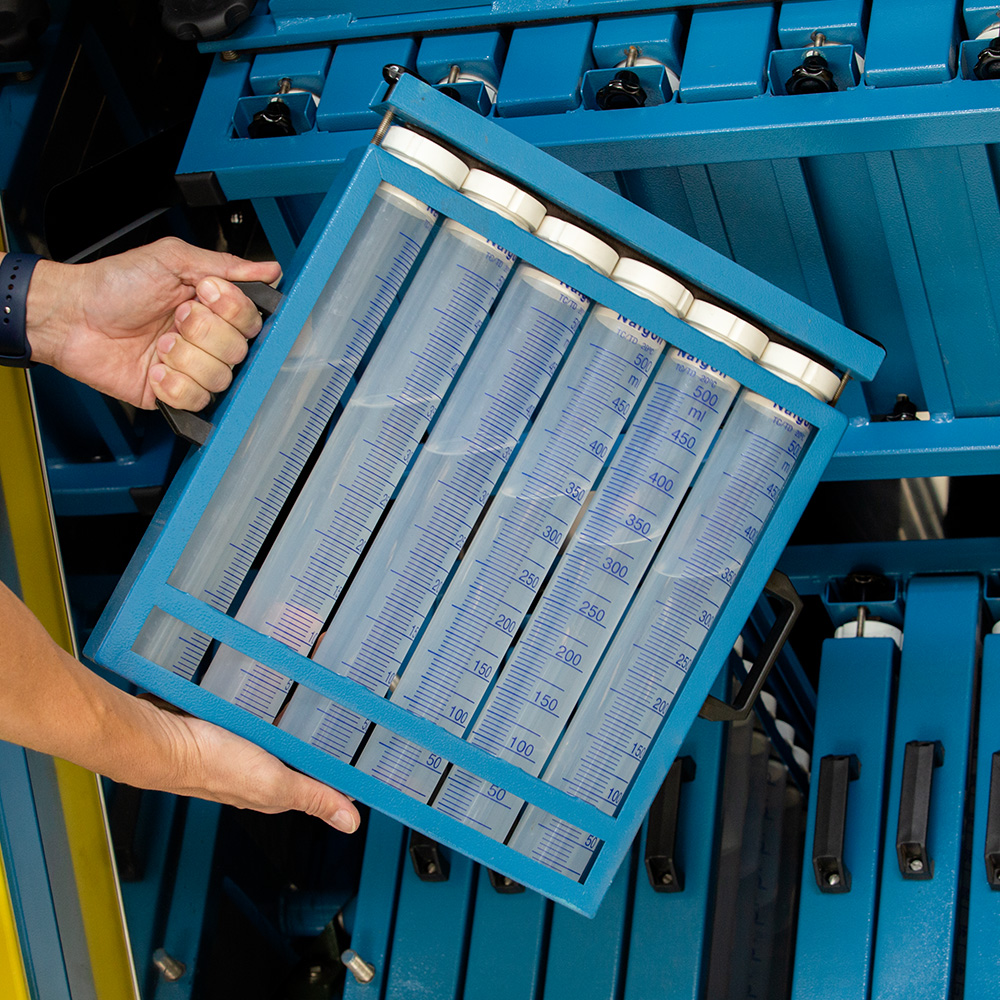

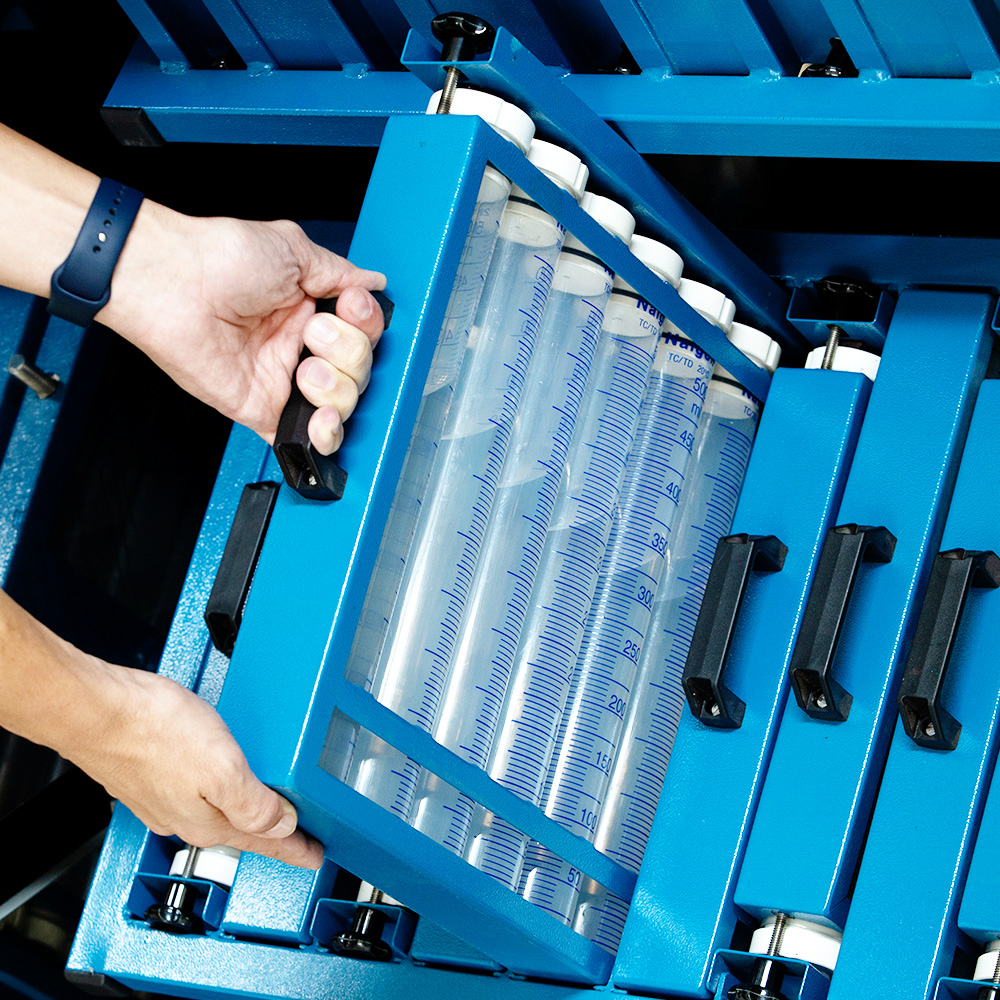

- Supports: Swivel with 10 drawers for 500 ml test tubes
- Attachment for drawers: Through the use of knobs
- Cabinet: In carbon steel with anti-corrosive treatment and electrostatic painting
- Dimensions: W=1400 x D=1000 x H=1800 mm
- Power: 1200W
- Voltage: 220V - 60Hz
- Comes with: 120 500ml Test Tubes - Instruction Manual and Warranty Term
Tecnal offers solutions in equipment for laboratories in various segments of activity, focused on the proper functioning of products, ease of use and high accuracy of results!
