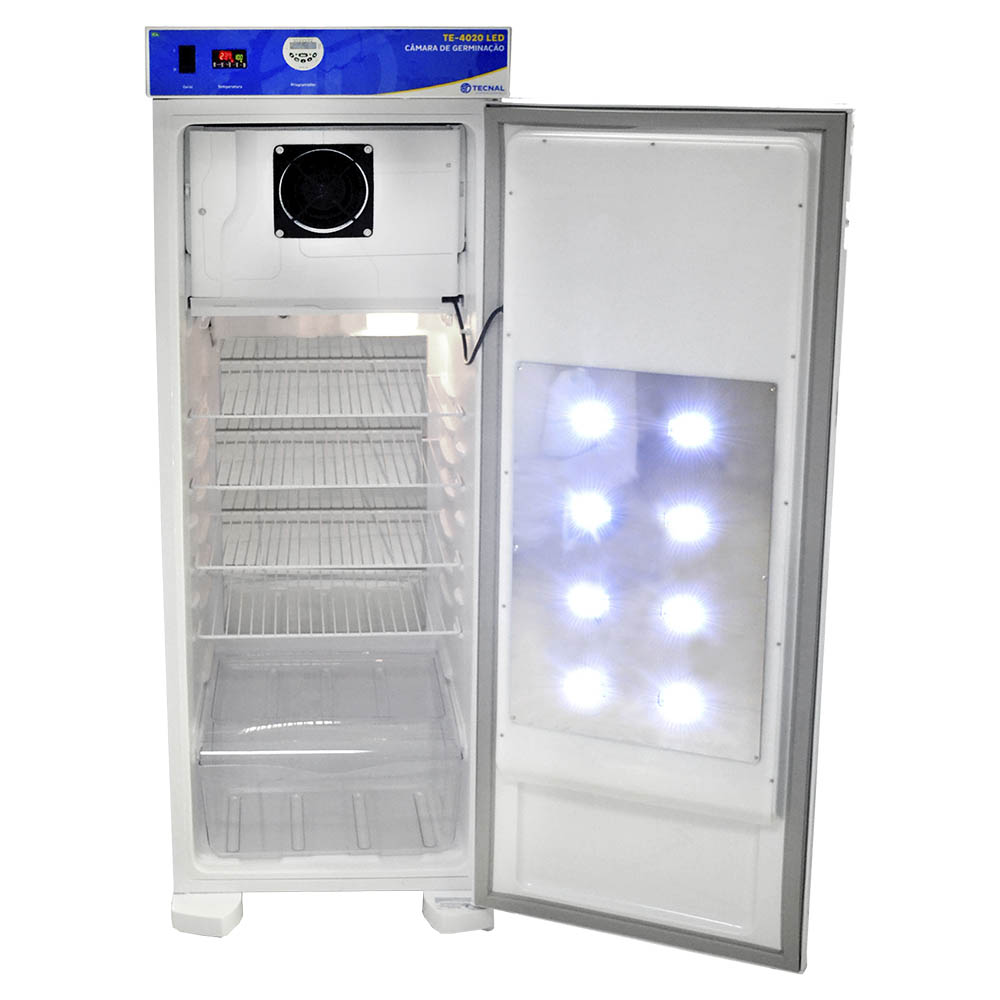

GERMINATION CHAMBER (LED)
GERMINATION CHAMBER (LED)
TE-4020/240L
Equipment used to test the influence of environmental effects (light and temperature) on plant germination.
Sugar & Ethanol
Food, Beverage & Animal Nutrition
Environmental, Waters & Effluents
Plant & Soil Science
Pharmaceutical & Cosmetics
Microbiology & Biotechnology
Chemistry & Petrochemicals
- It has an internal reservoir that provides moisture by natural evaporation
- Presence of superheat thermostat above 40°C with audible alarm and automatic shutdown for safety
- Micro-processed digital temperature controller with PID system with ramps and soaks
- It has PT-100 temperature sensor, which is the most accurate, increasing sensitivity
- Easy adjustment, providing agility
- High homogeneity
- Expanded polyurethane insulation for temperature conservation
- It has photoperiod with minimum lighting programming adjustment every 1 minute, with a maximum of 20 programs
- Internal lighting by LED lamps, which provides less internal heating compared to fluorescent lamps
- Easy maintenance
- IEC power input standard
- DR-compatible electrical system
- Rigid Quality Control, in which checks and tests guarantee the perfect functioning of the equipment, providing safety and client satisfaction
- Client service, to answer questions and provide explanations about the equipment and methodologies
- Possibility of adaptations according to the client needs, makes the equipment already of line a special equipment.
- Temperature: -10°C to 40°C

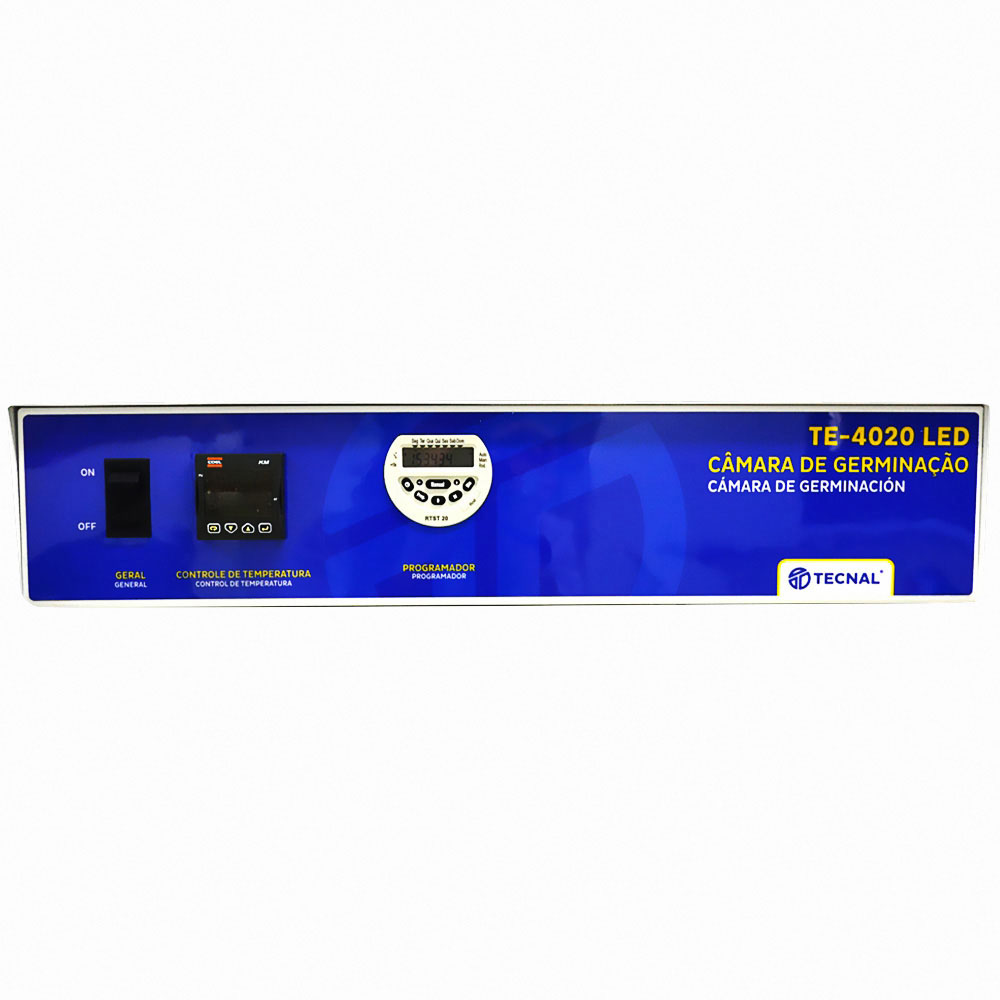

- Temperature controller: Digital microprocessor with PID system with ramps and soaks
- Sensor: PT-100
- Control accuracy: ±0.3°C
- Uniformity: ±1,0°C
- Compressor: Hermetic 1/8HP, with CFC-free 134-A gas
- Cooling capacity: 340 BTU/ha at 0°C
- Indoor lighting: 24 Cool White LED Bulbs (3000 Lux)
- Insulation: Expanded Polyurethane
- Photoperiod: Adjustment with a minimum lighting schedule every 1 minute, with a maximum of 20 programs
- Circulation: Forced Ventilation
- Humidity: Has an internal reservoir that provides humidity by natural evaporation
- Capacity: 6 shelves
- Maximum load limit per tray: 15kg
- Security: Overheat thermostat above 40°C with audible alarm and automatic shutdown
- Cabinet: In carbon steel with anti-corrosive treatment and electrostatic painting
- External dimensions: Width = 550 mm x Height = 1490 mm x Depth = 620 mm
- Volume: 240 liters
- Weight: 49 kg
- Power: 900 W
- Voltage: 220V ±5% 60Hz
- ** ** At 50Hz the cooling capacity may have a 10-15% power decrease
- ACCOMPANIES: - 02 extra fuses - 04 Shelves - Instruction manual with Warranty Term
- Internal dimensions: Width = 465 mm x Height = 720 mm x Depth = 450 mm
- Drain: Condensate drain outlet at the rear of the machine
- Resistance: Stainless steel, DR compatible
Tecnal offers solutions in equipment for laboratories in various segments of activity, focused on the proper functioning of products, ease of use and high accuracy of results!
