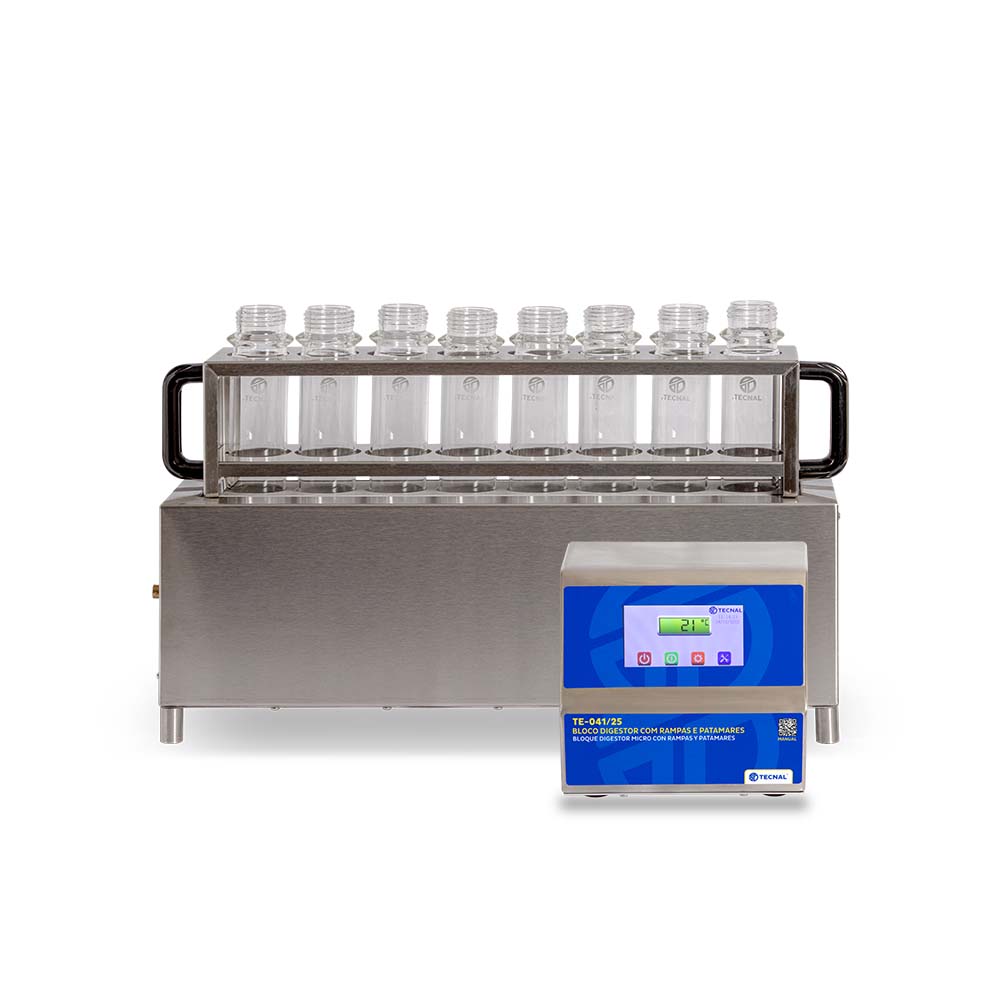

DIGESTOR BLOCK

DIGESTOR BLOCK
TE-0081/50

Used to digest the most diverse types of samples, such as plants, food, rubber, among others, for later analysis of nitrogen / protein.
Sugar & Ethanol
Food, Beverage & Animal Nutrition
Environmental, Waters & Effluents
Plant & Soil Science
Pharmaceutical & Cosmetics
Microbiology & Biotechnology
Chemistry & Petrochemicals
  • Compact equipment
  • User-friendly touch screen display
  • It has date and time on the display
  • It has Stand-by mode
  • After starting the process, it takes place automatically, providing agility
  • It can have 5 segments, therefore 5 ramps and 5 steps
  • Allows control of the time that the sample must remain at a certain temperature (level)
  • Allows control of acceptable temperature variation in the process
  • The ramp, when properly dimensioned, allows the temperature rise to be smooth, resulting in low overshoot and better temperature distribution across the block
  • At the end of the fulfillment of the programmed segments, there is a resource item called looping (cycles), which can be 0 to 10, providing agility
  • Allows the jumper option, in which two levels with the same set point can be programmed, providing a level with a longer time
  • At the end of the process, there is the option of control (remaining at constant temperature) or the final option, chosen by the client
  • It has a controller box separate from the block, which can be left outside the hood, resulting in a longer useful life for the equipment as it is more protected from acidic gases and vapors
  • 304 stainless steel casing, considerably increasing its useful life
  • Mug-type socket with the female side energized which provides user protection against electric shocks
  • Easy-fit cup-on-block cup connector
  • Transport gallery for the tubes, which facilitates the analyst work
  • Concave base of the block, which allows a perfect fit with the tubes, avoiding breakages
  • Armored resistance that guarantees safety
  • Thermal conservation of the block that provides agility and speed
  • Rigid Quality Control, in which checks and tests guarantee the perfect functioning of the equipment, providing safety and client satisfaction
  • Client service, to answer questions and provide explanations about the equipment and methodologies
  • Possibility of adaptations according to the client needs, makes the equipment already of line a special equipment.
  • Temperature: Ambient +7°C to 450°C
  • Temperature Controller: FE15J Digital controller board with PID system and ramps and steps with 1 program divided into 5 segments (temperatures) selectable with a maximum of 5 ramps and 5 steps (if 5 temperatures are selected). Possibility of 10 cycle repetitions
  • Selection of counting type: By time (counts the time regardless of temperature and obeys the programmed time) or by temperature (only starts counting if the system is within the programmed limit)
  • Control selection after ramps and soaks: Turns off the control or controls at the last set point
  • Operating screen: Touch Screen 4.3
  • Temperature Sensor: Type J thermocouple with stainless spring
  • Control accuracy: ±2°C
  • Uniformity: ±5°C
  • Safety: Shielded resistance avoiding contact with sulfuric acid
  • Block: In die-cast aluminum with 85 mm hole depth
  • Cabinet: Stainless steel 304
  • Dimensions (mm) of the Block: W=150 x D=600 x H=205 - Block + Gallery + Tubes: H=365
  • Weight: 17 kg
  • Power: 1700 Watts
  • Voltage: 220V
  • Accompanies: - 01 Gallery in STAINLESS STEEL - 01 digital temperature controller with ramps and soaks - 08 360 mL borosilicate glass macro tube (Ø50x250 mm) with thread already adapted for use with the exhaust gallery; - Instruction Manual with Warranty Term
Tecnal offers solutions in equipment for laboratories in various segments of activity, focused on the proper functioning of products, ease of use and high accuracy of results!
