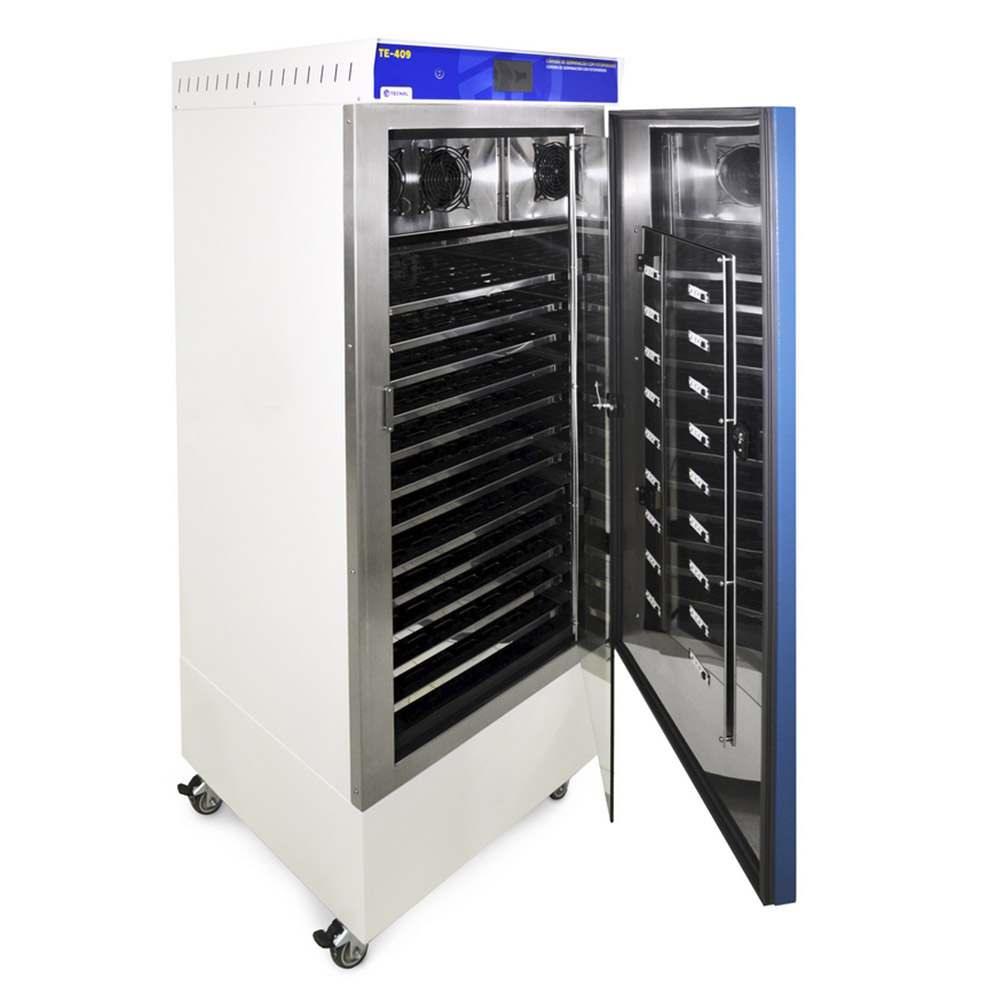

GERMINATION CHAMBER WITH PHOTOPERIODE AND LEDS
GERMINATION CHAMBER WITH PHOTOPERIODE AND LEDS
TE-409
Used to test the influence of environmental effects (light and temperature) on plant germination.
Sugar & Ethanol
Food, Beverage & Animal Nutrition
Environmental, Waters & Effluents
Plant & Soil Science
Pharmaceutical & Cosmetics
Microbiology & Biotechnology
Chemistry & Petrochemicals
- Presence of overheating thermostat with audible alarm and automatic shutdown for safety
- Micro-processed digital temperature controller with PID system with ramps and soaks
- It has PT-100 temperature sensor, which is the most accurate, increasing sensitivity

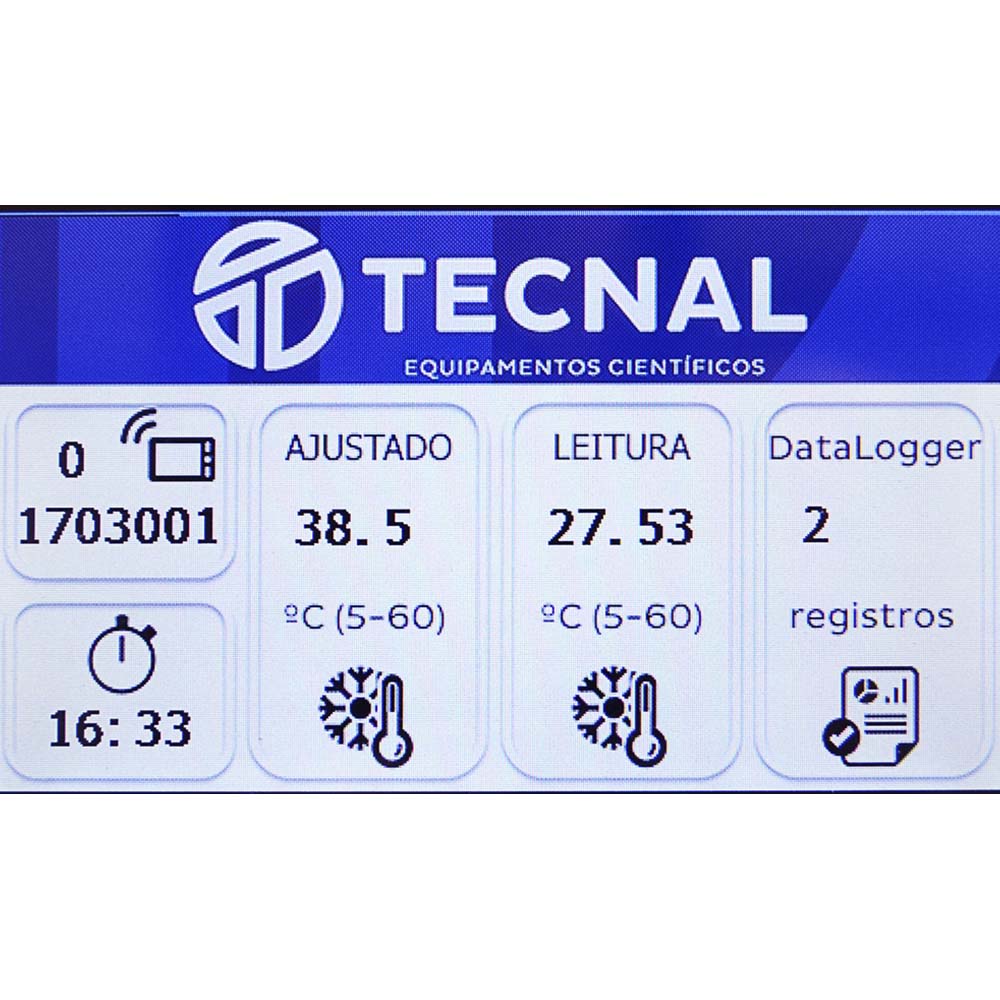

- Touch screen display for easy viewing and adjustment, providing agility
- Display with visualization of activated icons (heating, compressor, door alarm, communication, thermoperiod and photoperiod) and option for the controller to be placed in stand-by mode
- Good homogeneity
- It has photoperiod with on/off selection with the possibility of daily monitoring via panel selection
- Internal lighting by LED lamps, which provides less internal heating compared to fluorescent lamps
- Presence of a tempered glass front door for internal viewing without causing temperature changes
- You can work with a thermoperiod system with up to two temperatures, or a single set point
- Date and time adjustment
- Caster system for easy movement
- Serial communication (Free software) for one machine and option to work with more machines via RS 485
- Audible security alarm against open door
- High and low temperature audible alarms for set point control
- Presence of a latch to close the door, ensuring safety
- Permanent memory of the configuration state to restore the working state if there is a power failure, in addition to recovering programmable and calibration parameters
- It has a diagnostic screen, which facilitates the maintenance process
- Rigid Quality Control, in which checks and tests guarantee the perfect functioning of the equipment, providing safety and client satisfaction
- Client service, to answer questions and provide explanations about the equipment and methodologies
- Possibility of adaptations according to the clients needs, makes the equipment already of line a special equipment.
- Power supply: - 220VAC, optional 127VAC
- Temperature sensor: - PT100 3-wire
- - Working range: +10 to 60 °C with the led off and +10 to 40ºC with the led on
- Panel controller: - 4.3 inch touch screen
- - Resolution: 0.1 / Control ± 1.0°C (controller characteristics)
- - Uniformity : at 37°C: ± 1.0°C
- Memory: - Permanent memory of the configuration state to restore the working state if there is a power failure, as well as recovering programmable and calibration parameters
- - Interior lighting: on the door through LEDs
- Photoperiod System: On/off selection with possibility of daily monitoring via Panel selection as below:
- Module 1: Day: start at 6:15 am and end at 6:15 pm Evening: Start at 18:15 and finish at 6:15
- Module 2 Night: start at 9:00 pm and end at 3:00 am Sun: start at 3:00 and end at 09:00 Night: start at 9:00 am and end at 3:00 pm Day: start at 3:00 pm and end at 9:00 pm
- Term System: Selection of two temperatures for day and night with the possibility of daily monitoring via selection on the Panel as below:
- Module 1 Day: start at 6:15 am and end at 6:15 pm Evening: Start at 18:15 and finish at 6:15
- Module 2 Night: start at 9:00 pm and end at 3:00 am Sun: start at 3:00 and end at 09:00 Night: start at 9:00 am and end at 3:00 pm Day: start at 3:00 pm and end at 9:00 pm
- - Forced air circulation: without control (uninterrupted) ~ 130 L / per second
- - Cooling capacity: 420 BTU/H at 5°C using 1/8HP hermetic compressor, with CFC-free R-134-A gas
- - Cabinet and external door: in SAE 1020 steel and electrostatic painting
- - Inner chamber: in polished 430 stainless steel
- . - In front of tempered glass door for internal visualization in process
- Resistance: Door preheat resistance for system below ambient temperature (Against external condensation)
- Capacity: - Capacity for 6 shelves with 120mm intervals
- Drain: - Drain for capturing water from defrost or condensation
- System: - Caster system to facilitate movement
- - Power cable: according to NBR 14136 with IEC standard tripolar adapter
- Overheat Security: Overheat thermostat above 60°C with audible alarm and resistance control shutdown
- - Open Door Security: open door indication on the panel on the operation screen
- . After 5 minutes of the door open, the control system is disarmed, making the control in Standy-by
- Useful internal volume: 370 liters
- Dimensions: - external: 750 x 820 x 1740 mm (W x D x H) - internal: 570 x 550 x 1180 mm (W x D x H)
- - weight: 140 KG
- Full working power: 220V+/-5% 60Hz** Power: 750W ** At 50Hz use compatible compressor.
- - Compressor: 275 W
- - Resistance: 400 W
- - Controller: 15W
- - Circulation: 27W
- * * * FOLLOWS: - 3 stainless steel shelves - 1 CD-ROM containing Instruction Manual, Warranty term
